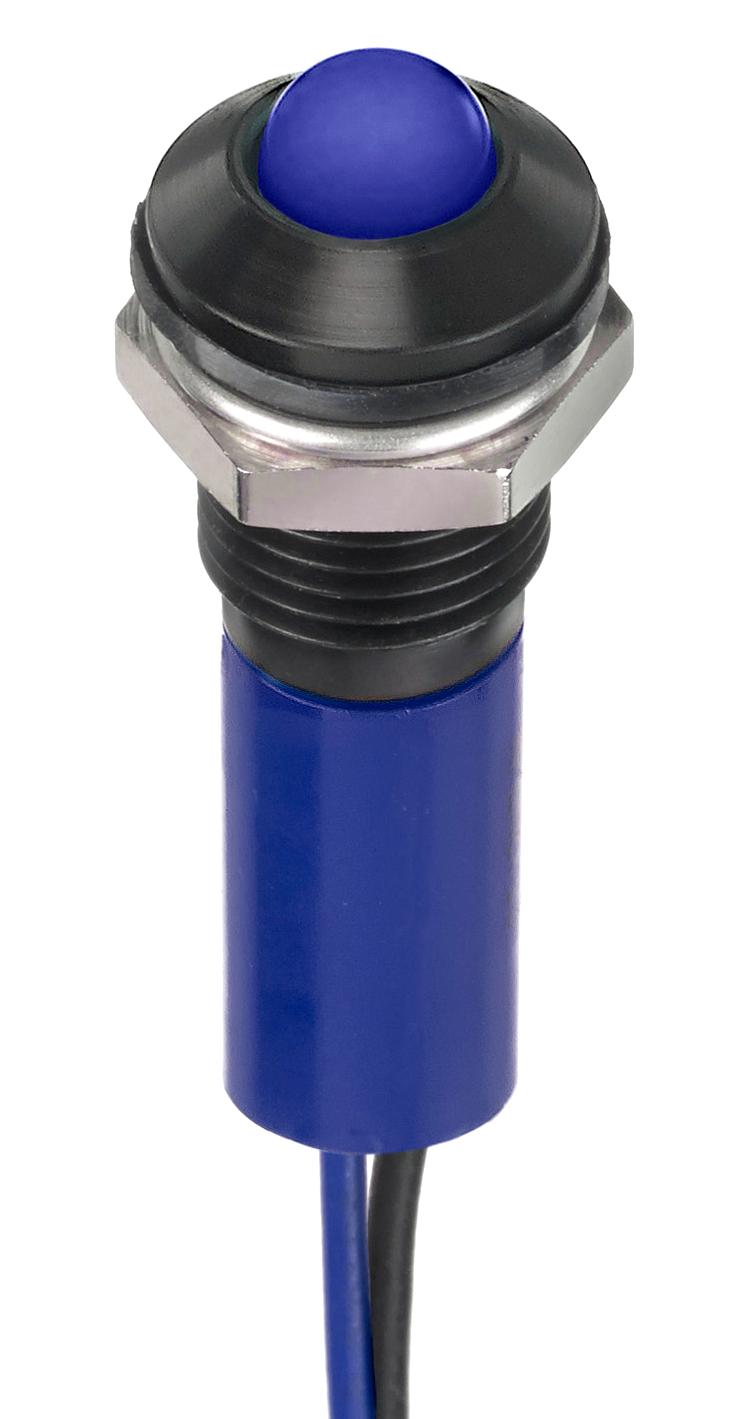

Apem Q8P3BXXB02E LED Indicator Light
The Q8 series panel-mounted LED indicators feature 8 mm diameter with prominent or recessed bezel styles, designed for durability and high visibility. They incorporate super bright or hyper bright LEDs with diffused or water-clear lenses in various colors including red, green, yellow, blue, orange, and white. Suitable for environmental sealing up to IP67, these indicators support multiple terminal options like solder lug, fastons, pins, or wires, and are capable of operating within temperature ranges from -40 °C to +85 °C. They excel in industrial applications requiring reliable status indication and long service life of up to 100,000 hours.
Apem Q8P3BXXB02E LED Indicator Light Specifications:
- Diameter: 8 mm
- Bezel Material: Plated brass with chrome, black, satin grey finishes, or stainless steel in flush style
- Lens: 5 mm diffused epoxy or water-clear
- Sealing: IP67 (option available)
- Operating Temperature: -30°C to +65°C (plastic body), -40°C to +85°C (epoxy body)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Panel Thickness: Max 7 mm
- Electrical: Forward Voltage 1.8 to 33 VDC, 20 mA max, various LED colors including red, green, yellow, blue, orange, white
- Terminal Options: Solder lug, fastons, pins, wires up to 200 mm
- Mounting: Flush or prominent bezel styles, with short, extended short, or recessed bodies
- Environmental Suitability: For industrial applications with optional IP67 sealing
Buy the APEM Series Q8 LED Indicators: Q8P3BXXB02E
Order APEM Q8 series LED indicator lights online today. Designed for industrial environments, these 8 mm indicators feature super bright LEDs, high durability, multiple terminal options, and IP67 sealing for reliable operation in harsh conditions. Perfect for status indication, they support various mounting styles including prominent and flush bezels, with an operating temperature range from -40 °C to +85 °C and a lifespan of up to 100,000 hours. Easy installation and durable construction make them ideal for demanding applications.
Get APEM Q8P3BXXB02E today—built for precision and long-lasting durability with high brightness LEDs and IP67 sealing.
Frequently Asked Questions
Where can I buy Apem Q8P3BXXB02E?
You can click on the BUY or RFQ button to purchase Q8P3BXXB02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P3BXXB02E?
You can download the Q8P3BXXB02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P3BXXB02E?
Apem
