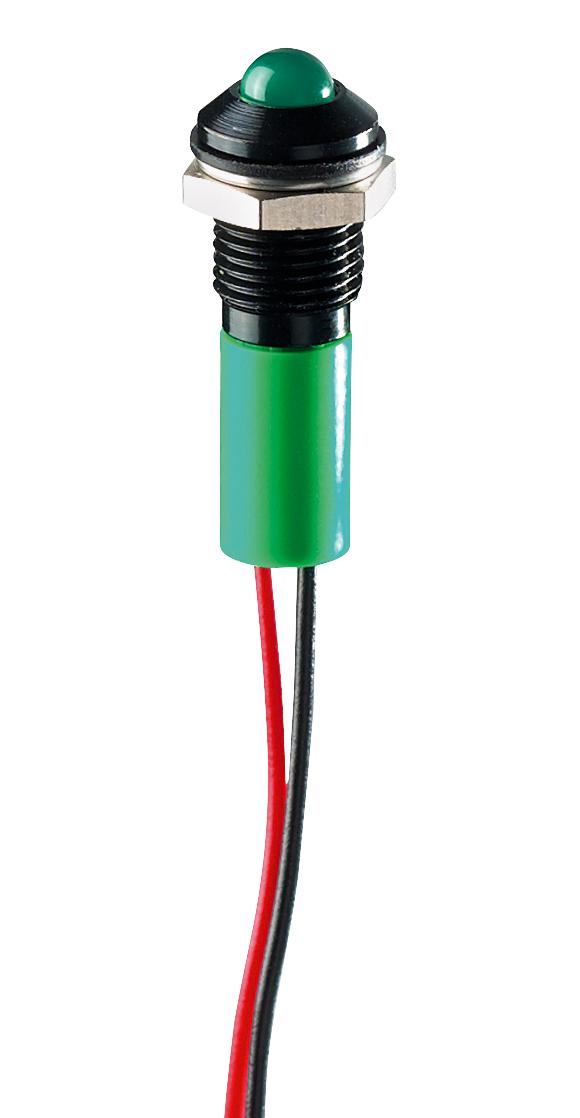

Apem Q8P3BXXG02E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diameter, water and dust-proof IP67 sealing, bright and super-bright LEDs with various colors, and recessed or flush bezel styles. They support different terminal options, including solder lug, fastons, pins, and wires, suitable for challenging environments with operating temperatures from -40°C to +85°C. These indicators have a maximum panel thickness of 7 mm, a life expectancy of 100,000 hours, and are made with durable materials like plated brass and stainless-steel bezels. Ideal for industrial automation and control systems requiring reliable visual indicators.
Apem Q8P3BXXG02E LED Indicator Specifications:
- Ingress Protection: IP67 sealing option (EN60529)
- Operating & Storage Temperature: -30 °C to +85 °C depending on body type
- LED Colors: Red, Green, Yellow, Blue, White, Orange, with Super Bright and Hyper Bright variants
- LED Voltage Range: 1.8 to 33 VDC; 110 VAC, 220 VAC options available
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 7 mm
- Material: Moulded polycarbonate rear body, plated brass or stainless steel bezel
- Mounting Options: Recessed, flush, extended short body, short body, with solder lug, fastons, pins, or wire terminations
- Electrical: Max Reverse Voltage: 5 V, Operating Current: 20 mA
- Bezel Finishes: Bright chrome, black, satin grey, stainless steel 316L
- Terminal Types: Solder lug, faston, pins, wires
- Dimensions: 8 mm diameter, various lengths for mounting options
- Environmental: Suitable for outdoor or industrial use with IP67 sealing, operating in harsh conditions
Buy the Buy Brand Q8 Series LED Indicators Part Number Q8P3BXXG02E Online
Discover the high-performance Q8 series LED indicators, designed for rugged industrial and control panel applications. Featuring 8 mm diameter, waterproof IP67 sealing, and various LED colors to suit your system needs. These indicators support multiple mounting styles, including recessed and flush bezels, with durable materials such as plated brass and stainless steel. They operate reliably over a broad temperature range from -40°C to +85°C and have a long lifespan of 100,000 hours. Perfect for automation, machinery, and outdoor installation, order online today for quick delivery and trusted quality.
Order your Brand Q8 Series LED Indicator Q8P3BXXG02E today and enhance your system visibility with reliable, high-brightness LED indicators.
