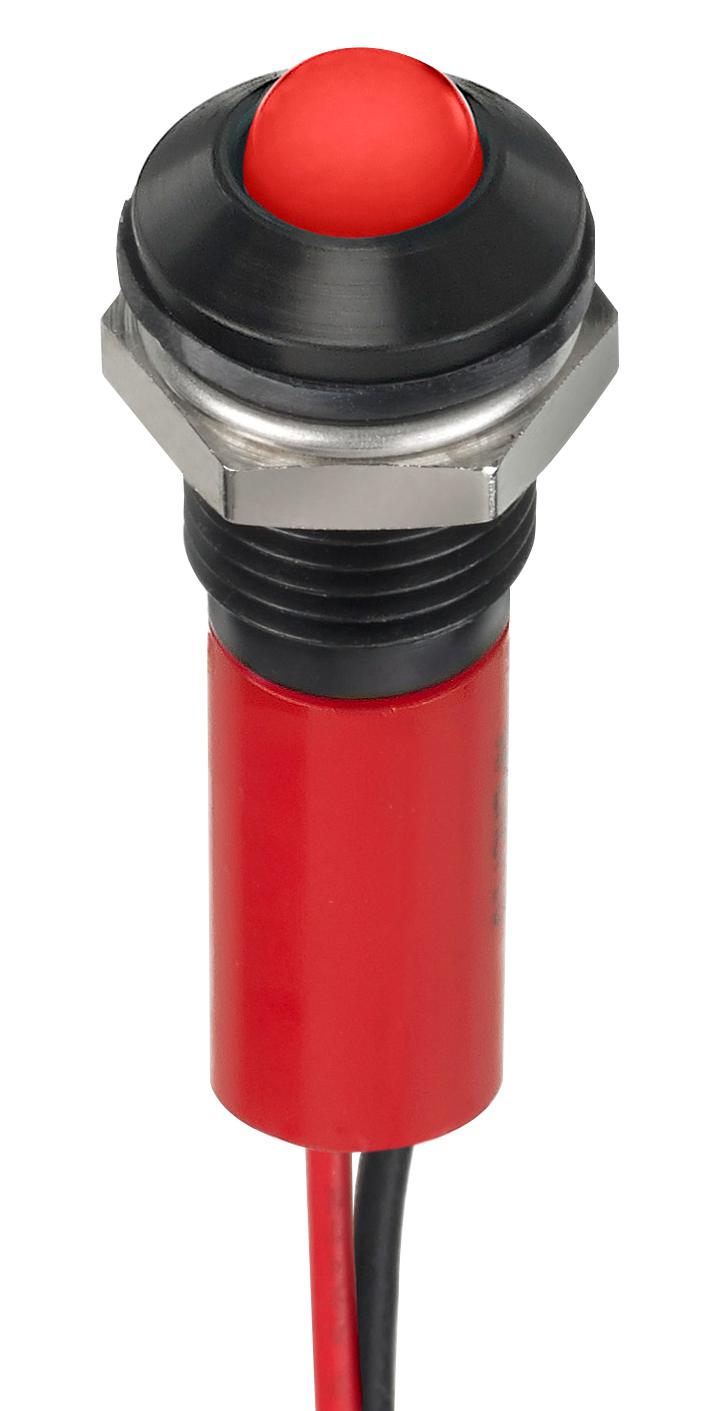

Apem Q8P3BXXR02E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diameter with options for prominent, recessed, and flush bezels finished in bright chrome, black, satin grey, or stainless steel 316L. They include super bright and hyper bright LEDs in multiple colors such as red, green, yellow, blue, and white, with voltages spanning from 2 VDC to 220 VAC. These indicators offer IP67 sealing, long lifespan of 100,000 hours, and various mounting options including solder lug, faston, pins, or wire terminations. Suitable for industrial controls, automation, and equipment status indication with robust construction and high brightness options.
Apem Q8P3BXXR02E LED Indicator Specifications:
- Diameter: 8 mm
- Sealing: IP67 option available
- Bezel material: Plated brass with chrome, black, satin grey; stainless steel 316L for flush version
- LED types: Super bright and hyper bright
- Colors: Red, Green, Yellow, Blue, White, Orange, Tricolor, Bi-color
- Voltage: 2 to 220 VAC/DC depending on configuration
- Viewing angle: 30-100° (model dependent)
- Life expectancy: 100,000 hours
- Operating temperature: -30 °C to +85 °C (rear epoxy body), -40 °C to +65 °C (plastic rear body)
- Max reverse voltage: 5 V
- Mounting: Solder lug, faston terminals, pins, or wire with options for short, extended short, or recessed bezel
- Torque: 20 to 25 cNm
- Material: Moulded polycarbonate rear body with plated brass or stainless steel bezel
- Max panel thickness: 7 mm
Buy the Apem Series Q8 LED Indicators: Q8P3BXXR02E
Order the Apem LED Indicator today for reliable performance in industrial control panels. Featuring various bezel styles, vibrant LED colors, and sealing options, it ensures high visibility and durability. Designed to withstand harsh environments with IP67 sealing and a lifespan of 100,000 hours, this indicator is perfect for machinery status, automation systems, and control panels. Easy to install with multiple mounting and termination options, the Q8 series provides the flexibility and brightness needed for accurate status indication and professional automation solutions.
Get Apem Q8P3BXXR02E today—built for industrial robustness and long-lasting durability.
Frequently Asked Questions
Where can I buy Apem Q8P3BXXR02E?
You can click on the BUY or RFQ button to purchase Q8P3BXXR02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P3BXXR02E?
You can download the Q8P3BXXR02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P3BXXR02E?
Apem
