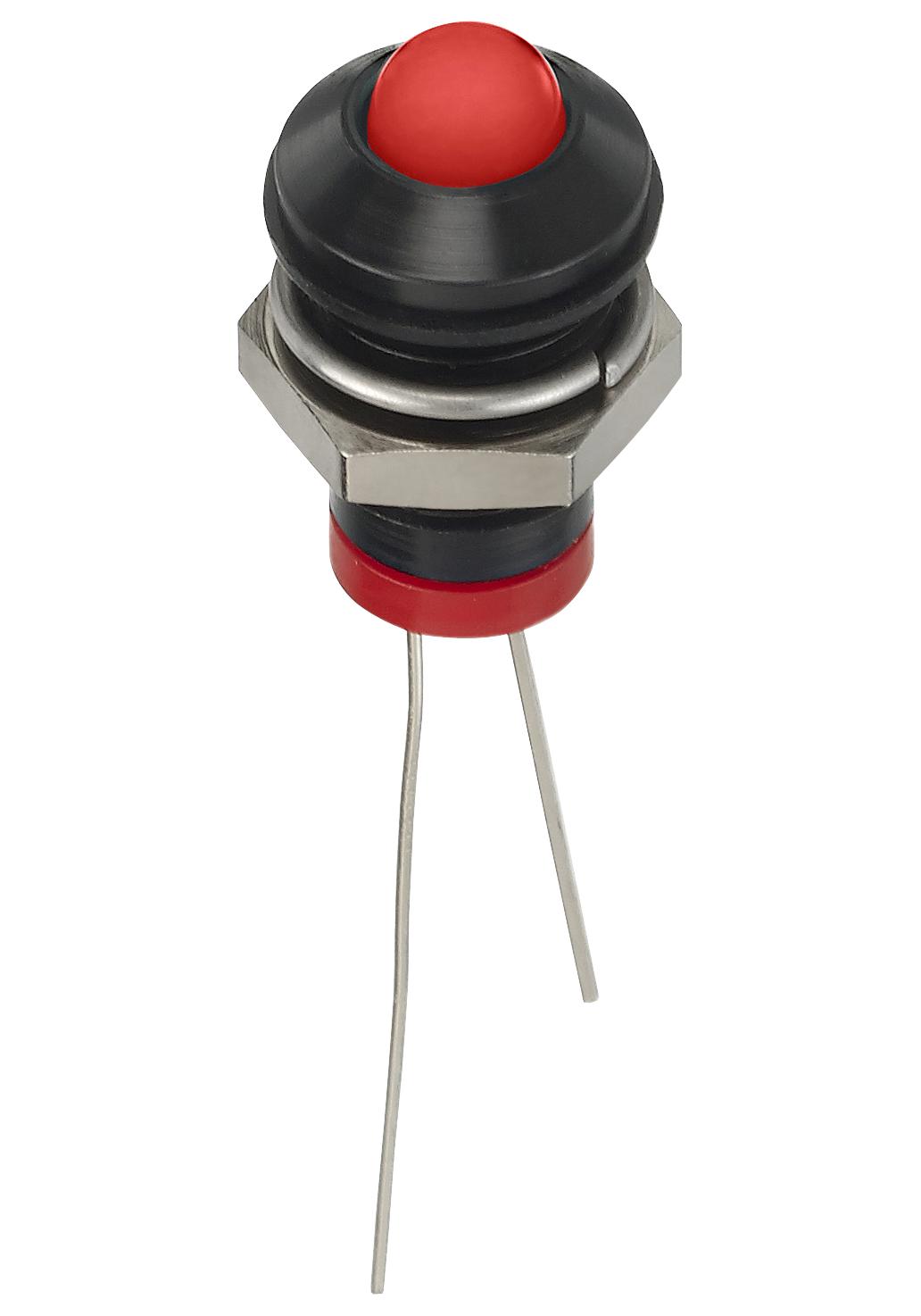

Apem Q8P6BXXR02E Panel Mount LED Indicator
The Q SERIES 8mm panel mount LED indicators are robust, high-quality devices designed for panel illumination and status indication. They feature a durable brass bezel with chrome or satin grey finishes and are available in multiple illumination options, including standard and super/hyper bright LEDs in various colors. These indicators operate from 2VDC to 220VAC, with IP67 sealing for outdoor or harsh environments. They have long life expectancy of 100,000 hours and are suitable for multiple mounting styles with solder lug, faston terminals, pins, or wire terminations, ensuring versatile installation options.
Apem Q8P6BXXR02E Panel Mount LED Indicator Specifications:
- Diameter: 8mm (.315 inch)
- Bezel Finish: Bright chrome, black chrome, satin grey
- Lighting Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color options
- Voltage Range: 2VDC to 220VAC
- Viewing Angle: 30-100°
- Maximum Reverse Voltage: 5V
- Operating Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Ingress Protection: IP67 sealing option
- Mounting Hole Size: Max 7mm thickness, 8mm diameter
- Terminals: Solder lug, faston, pins, wire (200mm, 24AWG)
- Operating Current: 20mA
- Forward Voltage: 2.0V (Red), 2.2V (Green, Yellow), 3.3V (Blue, White, Orange)
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Sealing: IP67 for waterproof operation
- Installation: Recessed, flush, prominent bezel styles
Buy the APEM Series Q LED Indicator: Q8P6BXXR02E
Purchase the APEM Series Q8 Panel Mount LED Indicator online today for your electronic control systems. Designed with durable bezels and available in a range of bright and standard illumination colors, these indicators deliver excellent visibility and long operational life. Suitable for harsh environments with IP67 sealing, they operate across a wide voltage range from 2VDC to 220VAC. Easy to install with various terminal options, they are ideal for industrial, automation, or control panel applications, ensuring reliable and clear status indication.
Order your APEM Series Q LED Indicator today and ensure reliable status signaling for your industrial or control panels.
Frequently Asked Questions
Where can I buy Apem Q8P6BXXR02E?
You can click on the BUY or RFQ button to purchase Q8P6BXXR02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P6BXXR02E?
You can download the Q8P6BXXR02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P6BXXR02E?
Apem
