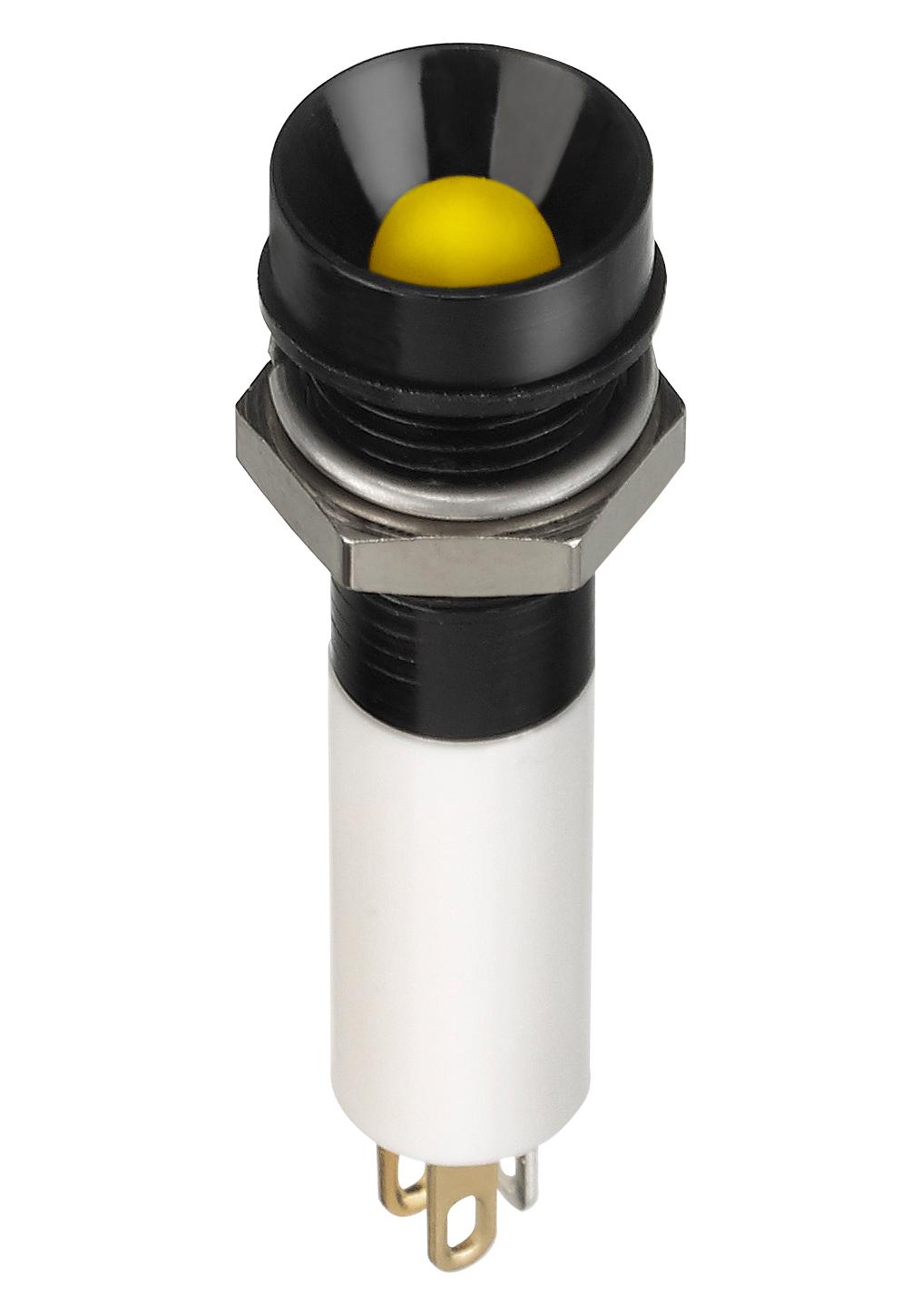

Apem Q8R1BZZRYG24E LED Indicator
The Q SERIES 8mm panel mount LED indicators feature a compact design with multiple color options including red, green, yellow, blue, and white. They are suitable for panel sealing with IP67 rating and are available with various bezel finishes like bright chrome, black chrome, or satin grey. These LEDs operate from 2VDC to 220VAC, with long life expectancy of 100,000 hours, and are sealed, durable, and easy to install with solder lug, faston, pins, or wire terminations. They also support prominent and recessed flush styles and are UL Recognized components, ideal for automation and indicator applications.
Apem Q8R1BZZRYG24E LED Indicator Specifications:
- Operating Voltage Range: 2VDC to 220VAC
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Max Reverse Voltage: 5V
- Sealing: IP67 rated (EN60529)
- Bezel Finish: Bright chrome, black chrome, satin grey
- Front Diameter: 8mm (0.315 inches)
- Panel Cutout: Max 7mm thickness, 8.75mm hole size
- Terminals: Solder lug, faston, pins, or 200mm wire
- LED Colors: Red, green, yellow, blue, white, orange, bi-color and tri-color options
- Forward Voltage: 2.0-3.3V depending on color
- Operating Currents: 20mA typical
- UL Recognized: Yes
Buy the Buy APEM Q SERIES Panel Mount LED Indicators Part Number Q8R1BZZRYG24E Online
Purchase the APEM Q SERIES LED indicator online today to enhance your industrial control or automation system. Featuring an 8mm panel mount design, multiple colors including red, green, yellow, blue, and white, and IP67 sealing, this indicator offers robustness for demanding environments. Operates from 2VDC to 220VAC with a life span of 100,000 hours. Easy to install with solder lug, faston, pins, or wire terminals. Durable, reliable, UL Recognized, and suitable for a wide range of industrial applications.
Get APEM Q SERIES LED indicator today—built for durability, versatile mounting, color options, and reliable operation from 2VDC to 220VAC.
Frequently Asked Questions
Where can I buy Apem Q8R1BZZRYG24E?
You can click on the BUY or RFQ button to purchase Q8R1BZZRYG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8R1BZZRYG24E?
You can download the Q8R1BZZRYG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8R1BZZRYG24E?
Apem
