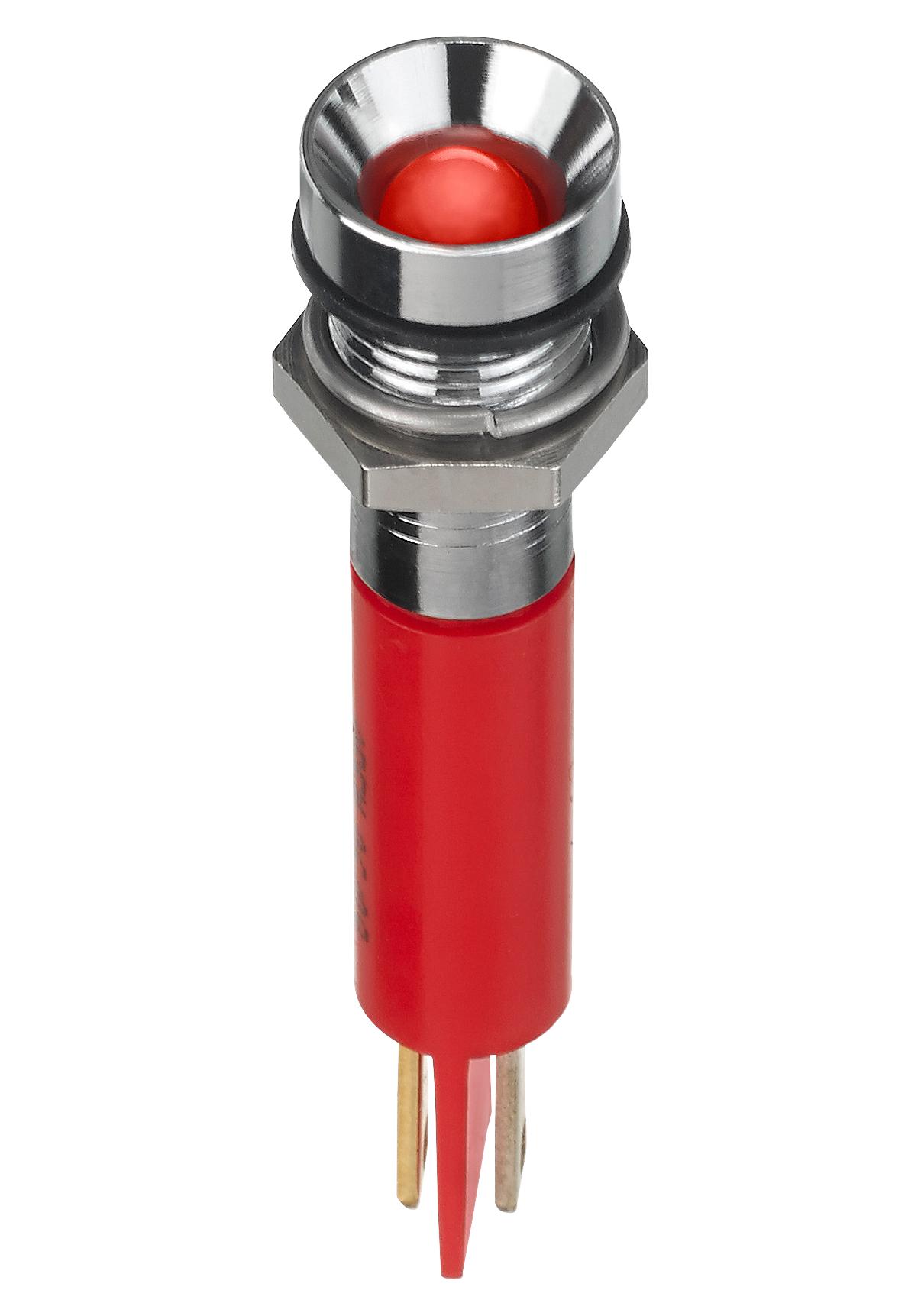

Apem Q8R1CXXY24 LED Indicator
The Q8 series panel mount LED indicators feature 8 mm size with distinctive bezel styles, including prominent, recessed, and flush options. Equipped with super bright and hyper bright LEDs, they offer excellent visibility with wide viewing angles of 30-100°. These indicators support various mounting options such as solder lug, faston terminals, pins, or wire terminations, and are suitable for panel thicknesses up to 7 mm. They are constructed with durable materials like plated brass and stainless steel, and are rated with IP67 sealing, operating in temperatures from -40°C to +85°C depending on the body type. Electrical specifications include operating voltages from 1.8 VDC to 235 VAC, with a life expectancy of 100,000 hours.
Apem Q8R1CXXY24 LED Indicator Specifications:
- Size: 8 mm panel mount
- Bezel Material: Plated brass finished in bright chrome, black, satin grey, or stainless steel 316L
- Lens: 5 mm diffused epoxy or water clear
- Sealing: IP67 option available
- Temperature Range: -30°C to +85°C depending on body type
- Viewing Angle: 30° to 100°
- Expected Life: 100,000 hours
- Electrical Voltage: 1.8 VDC to 235 VAC
- Operating Current: Up to 20 mA
- Terminal Types: Solder lug, faston, pins, or wires (200 mm long)
- Max Panel Thickness: 7 mm
- Mounting Styles: Prominent, recessed, flush
- Durability: Moulded polycarbonate rear body, stainless steel bezel in flush version
Buy the Brand Q8 – Reliable LED Indicators for Industrial Applications
Discover the high-performance LED indicators designed for industrial environments. The Q8 series offers versatile mounting options, IP67 sealing, and bright LEDs with wide viewing angles. Suitable for panel thicknesses up to 7 mm, these indicators operate across a broad voltage range from 1.8 VDC to 235 VAC, ensuring reliable performance in demanding applications. Built with durable materials like plated brass and stainless steel, they deliver a long life expectancy of 100,000 hours. Easy to install and ideal for control panels, automation systems, and equipment requiring high visibility indicators.
Order your Brand Q8 series LED indicator today and enhance your machinery with dependable, high-brightness illumination for industrial projects.
Frequently Asked Questions
Where can I buy Apem Q8R1CXXY24?
You can click on the BUY or RFQ button to purchase Q8R1CXXY24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8R1CXXY24?
You can download the Q8R1CXXY24 datasheet or visit the Apem website for support.
Who is the manufacturer of Q8R1CXXY24?
Apem
