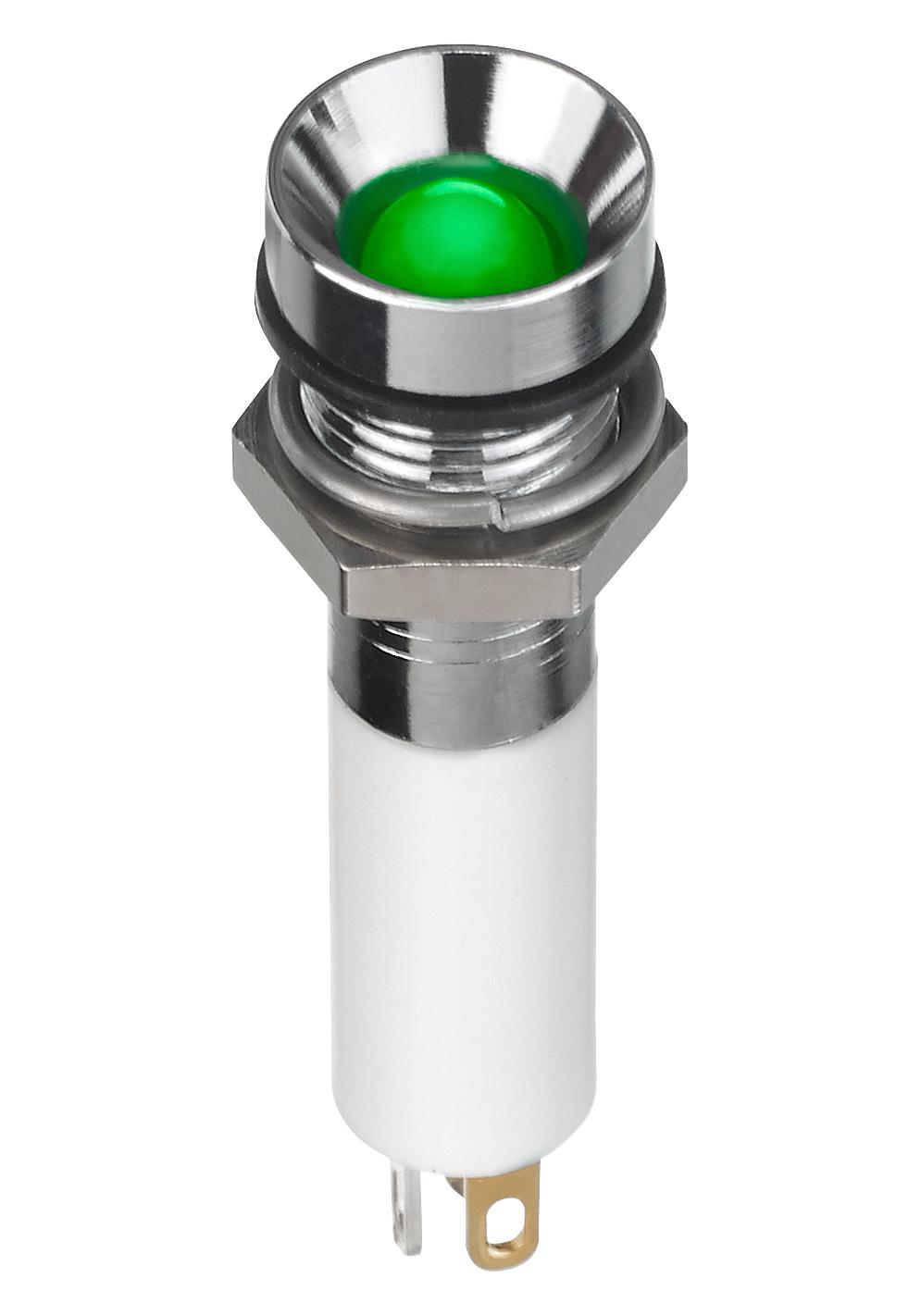

Apem Q8R1CZZRYG12E Panel Mount Indicator
The Q8 series panel-mount LED indicators are 8mm diameter fixtures suitable for industrial applications requiring reliable illumination. They feature various LED colors including red, green, yellow, blue, white, and orange, with options for super bright and hyper bright intensities, enhanced visibility, and IP67 sealing for environmental protection. These indicators support voltages from 2VDC to 220VAC, with multiple terminal types such as solder lugs, pins, or wire terminations. Designed with durable bezels in chrome, black chrome, or satin gray, they are ideal for panel sealing up to 7mm thickness, offering longevity and consistent operation in demanding settings. Options include bi-color and tri-color configurations for versatile signaling. They provide a viewing angle of 30-100°, a long life expectancy of 100,000 hours, and a maximum reverse voltage of 5V, suitable for industrial control panels and automation systems.
Apem Q8R1CZZRYG12E Panel Mount Indicator Specifications:
- Diameter: 8mm (.315 inch)
- Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- Voltages: 2VDC to 220VAC
- Forward Voltage: 2.0V (Red), 2.2V (Green), 2.1V (Yellow), 3.3V (Blue/White), 2.2V (Orange)
- Brightness: Standard, Super Bright (up to 10,000mcd), Hyper Bright (up to 6000mcd)
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5V
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40 to +85°C
- Sealing: IP67 (optional)
- Bezel Finishes: Bright chrome, black chrome, satin gray
- Terminals: Solder lug, pins, or 200mm wire
- Panel Thickness: Max 7mm
- Ambient Humidity: Not specified
- Soldering Temperature: 270°C for 2 sec
- Max Panel Hole Size: 8mm
- Certifications: UL Recognized
Buy the APEM Q8R1CZZRYG12E – Reliable Indicator for Industrial Applications
Purchase the APEM Q8 series panel-mount LED indicator today online and ensure reliable, long-lasting illumination for your industrial control panels. These 8mm indicators are available in diverse colors and brightness levels, including super bright and hyper bright options, to suit various visibility needs. Designed with durable bezels in chrome, black chrome, or satin gray finishes, they support voltage ranges from 2VDC to 220VAC. IP67 sealing ensures environmental protection, making them perfect for demanding applications. Order now and upgrade your automation and control systems with high-quality indicators that guarantee longevity and performance.
Order your APEM Q8R1CZZRYG12E series LED indicator today and enhance your control panels with bright, durable illumination for industrial environments.
