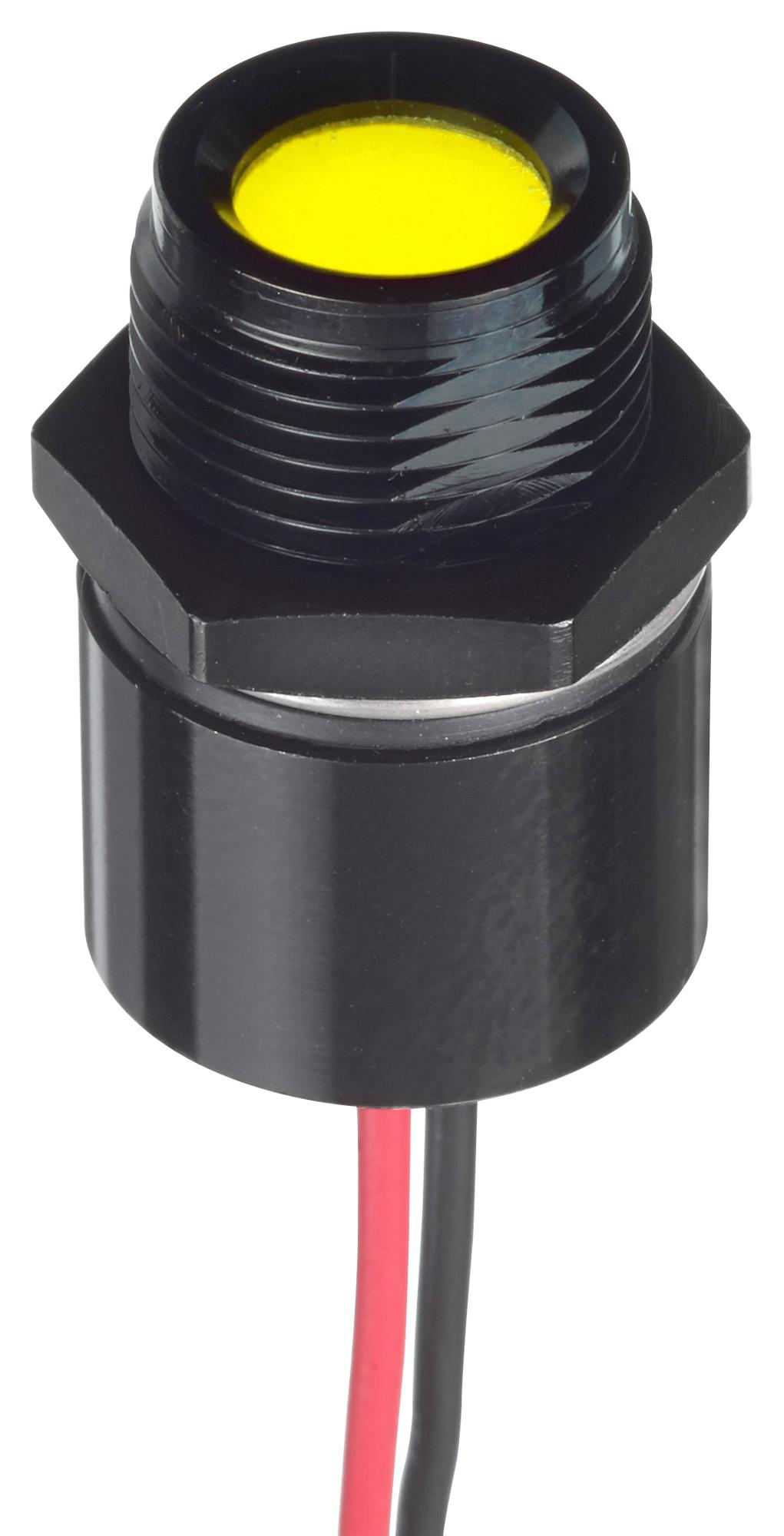

Apem QRM145BXXHY12E Industrial LED Indicator
The QRM14 series rear panel mount LED indicators are robust and sealed, featuring 14mm size with a variety of colors including super bright and hyper bright options. These LEDs operate between 2VDC and 28VAC/DC, with IP67 sealing for outdoor or harsh environments. They offer bi-color and tri-color configurations, with an internal epoxy seal for durability. The units include wires, fixing nut, spring washer, and O-ring, suitable for panel thickness up to 10mm. Designed for precise indicator applications in industrial settings. They have a long life expectancy of 100,000 hours and operate in temperatures from -40°C to +85°C.
Apem QRM145BXXHY12E Industrial LED Indicator Specifications:
- Size: 14mm diameter
- Operating Voltage: 2VDC to 28VAC/DC
- Operating Current: 20mA max
- Reverse Voltage: Max 5V
- Viewing Angle: 60°
- Sealing: IP67 (EN60529)
- Body Material: Black chrome plated brass
- Wires: 200mm, 22AWG UL1061
- Operating Temperature Range: -40 to +85°C
- Storage Temperature Range: -55 to +100°C
- Max Panel Thickness: 10mm
- Torque: 75cNm
- LED Colors: Red, Green, Yellow, Blue, White, Orange
- Brightness: Standard, Super Bright, Hyper Bright options
- Material: Epoxy sealed rear end, nitrile O-ring sealing
- Mounting: Rear panel, fixed with nut, washer, and O-ring
- Rated Life: 100,000 hours
- Certifications: UL Recognized Component
- Temperature Rating: -40°C to +85°C
Buy the APEM QRM145BXXHY12E – Reliable Indicator for Industrial Applications
Order the APEM QRM145BXXHY12E LED indicator online today to enhance your industrial control panel with highly reliable, sealed, and bright LED technology. Available with multiple color options, including super bright and hyper bright variants, these 14mm rear mount indicators ensure long-lasting performance with a rated life of 100,000 hours. Easy to install with a robust IP67 seal, they withstand harsh environments. Perfect for applications requiring durable, highly visible status indication in control and automation systems, supporting temperatures from -40°C to +85°C.
Get APEM QRM145BXXHY12E today—built for precision, durability, and clear visual indication in demanding industrial environments.
