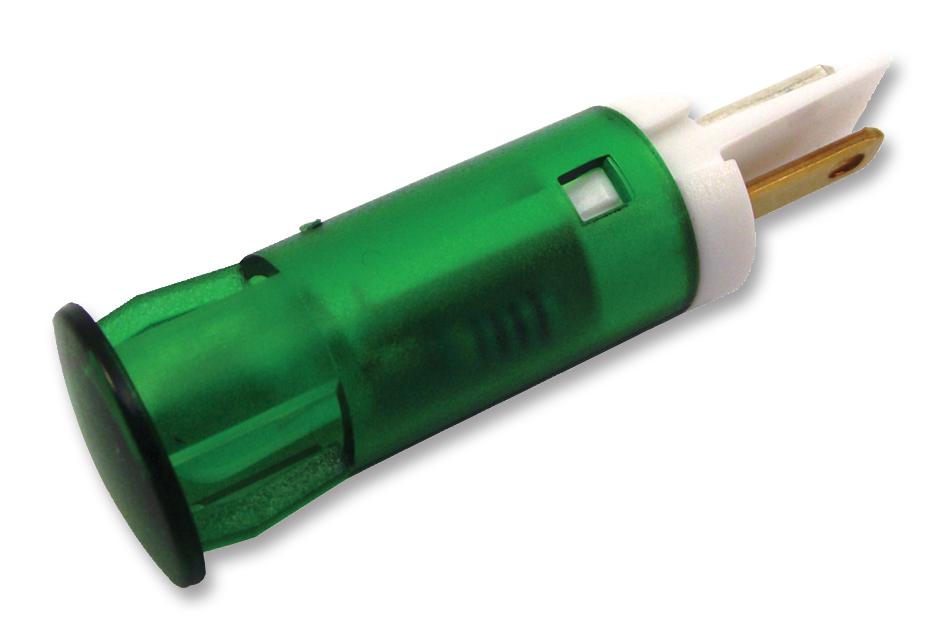

Apem QS101XXG24 Panel Mount LED Indicator
The QS Series snap-in panel mount LED indicators are designed for easy front panel installation with no extra hardware. Available in 6mm, 8mm, 10mm, and 12mm cut-outs, these LEDs feature diffused flat lenses in various colors, including red, green, yellow, blue, orange, and white. They operate over a voltage range of 2VDC to 220VAC, with options for standard or high brightness, daylight viewing, and bi-color configurations. Made from durable polycarbonate bodies with gold or silver flash solder lug/faston terminals, rated for up to 100,000 hours life and operating temperatures from -30°C to +85°C, suitable for industrial applications.
Apem QS101XXG24 Panel Mount LED Indicator Specifications:
- Cut-out sizes: 6mm, 8mm, 10mm, 12mm
- Lens material: Polycarbonate (UL94V-0)
- Body material: Polycarbonate (UL94V-0)
- Terminal types: Solder lug/faston, gold or silver flash
- Wire gauge: 24AWG for 6mm and 8mm, 22AWG for 10mm and 12mm
- Wire length: 200mm standard
- Voltage range: 2VDC to 220VAC
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +100°C
- Life expectancy: 100,000 hours
- Viewing angles: 30° standard, 45° high brightness
- Reverse voltage: Max 5V
- Colors: Red, Green, Yellow, Blue, Orange, White
- LED intensity: Standard or high brightness options
- Bi-color option available, up to 28VDC
- UL496 recognized
Buy the Buy APEM QS Series LED Indicators Part Number QS101XXG24 Online
Purchase APEM QS Series panel mount LED indicators online today and enjoy high-quality, durable, and easy-to-install LED lights suitable for various industrial and control panel applications. With multiple sizes, colors, and brightness levels, these indicators provide clear visual signals, ensuring safety and operational efficiency. Featuring long life expectancy of 100,000 hours, versatile voltage compatibility from 2VDC to 220VAC, and robust polycarbonate construction, they are ideal for demanding environments. Order now to enhance your control systems quickly and conveniently.
Buy APEM QS Series LED indicators now and experience reliable, long-lasting illumination for your panel applications with high brightness options.
Frequently Asked Questions
Where can I buy Apem QS101XXG24?
You can click on the BUY or RFQ button to purchase QS101XXG24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS101XXG24?
You can download the QS101XXG24 datasheet or visit the Apem website for support.
Who is the manufacturer of QS101XXG24?
Apem
