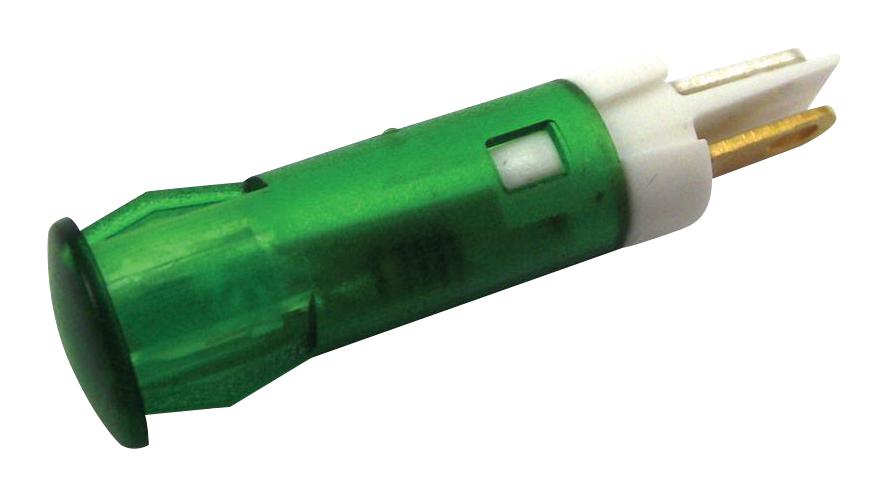

Apem QS121XXG12 Panel Mount LED Indicator
The QS121XXG12 from APEM is a 12mm snap-in panel mount LED indicator with a polycarbonate (UL94V-0) lens and body molding. It features a green, diffused flat lens for replacing traditional filament and neon indicators, making it suitable for various applications such as catering equipment, fire alarm panels, power distribution sockets, battery chargers, and domestic and commercial appliances. The indicator operates within a voltage range of 10.8 to 13.2V DC at 20mA, with a fixed illumination intensity of 20 millicandelas. It has a viewing angle of 30°, a lifespan of approximately 100,000 hours, and is UL496 recognized. The device includes a solder lug terminal (2.8 x 0.8mm), supports an operating temperature from -30°C to +85°C, with a maximum reverse voltage of 5V and forward voltage of 2.2V.
Apem QS121XXG12 Panel Mount LED Indicator Specifications:
- Lens Material: Polycarbonate (UL94V-0)
- Lens Color: Green
- Lens Type: Diffused flat
- Size: 12 mm
- Viewing Angle: 30°
- Operating Voltage Range: 10.8 to 13.2 V DC
- Forward Voltage: 2.2 V
- Operating Current: 20 mA
- Luminous Intensity: 20 millicandelas
- Temperature Range: -30°C to +85°C
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Mounting: Snap-in panel mount
- Terminal Type: Solder lug (2.8 x 0.8 mm)
Buy the APEM QS121XXG12 – Reliable Green LED Indicator for Industrial Applications
Purchase the APEM QS121XXG12 12mm panel mount LED indicator online today to enhance your industrial, commercial, or domestic equipment. Featuring a durable polycarbonate lens, green diffused light, and simplified snap-in mounting, it ensures reliable operation, long lifespan, and clear visibility. Ideal for fire alarm panels, power sockets, battery chargers, and other control panels, this energy-efficient indicator operates within a safe voltage range of 10.8 to 13.2V DC at 20mA. Trust APEM for high-quality, easy-to-install indicators for your application.
Buy APEM QS121XXG12 now and experience unmatched reliability and performance for your industrial and commercial indicator needs.
