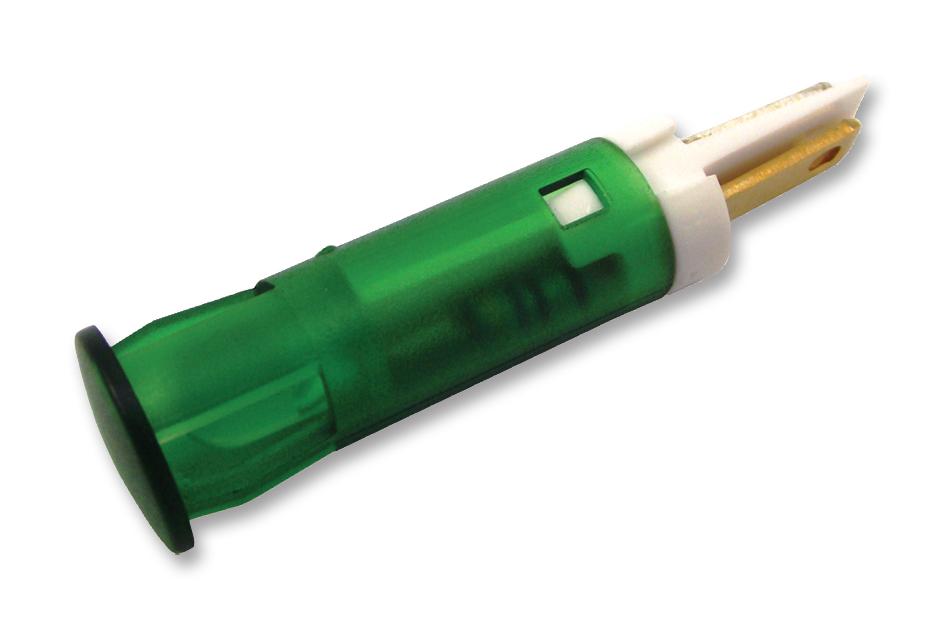

Apem QS81XXHG220 LED Indicator
The QS series snap-in panel mount LED indicators are designed for easy front panel installation without additional hardware. Available in 6mm, 8mm, 10mm, and 12mm cut-outs, these LEDs feature diffused flat lenses in various colors, including Red, Green, Yellow, Blue, Orange, and White. They support voltage ranges from 2VDC to 220VAC, with options for standard or high-brightness LEDs suitable for daylight viewing. Terminations include solder lug and faston with gold or silver plating, and wires of 6mm, 8mm, 10mm, and 12mm sizes. A long lifespan of 100,000 hours, operating temperatures from -30°C to +85°C, and UL recognition make these indicators ideal for industrial applications.
Apem QS81XXHG220 LED Indicator Specifications:
- Cut-out sizes: 6mm, 8mm, 10mm, 12mm
- Lens: Diffused flat polycarbonate (UL94V-0)
- Colors: Red, Green, Yellow, Blue, Orange, White (clear)
- Voltage range: 2VDC - 220VAC
- Forward Current: 20mA (standard), 3mA (high brightness white)
- Forward Voltage: Red 2.2V, Green 3.3V, Yellow 2.0V, Blue 3.3V, Orange 2.2V, White 3.3V
- Intensity: Red 25 mcd, Green 20 mcd, Yellow 20 mcd, Blue 800 mcd, Orange 30 mcd, White 1200 mcd
- Viewing angle: 30° (standard), 45° (high brightness)
- Terminals: Solder lug or faston (6mm, 8mm, 10mm, 12mm), gold or silver plated
- Wire lengths: 200mm, 22-24 AWG PVC insulated wires
- Operating temperature: -30°C to +85°C
- Life expectancy: 100,000 hours
- Certifications: UL Recognized
- Max reverse voltage: 5V
Buy the Buy APEM QS Series Snap-in Panel Mount LED Indicators Part Number QS81XXHG220 Online
Discover the reliable and easy-to-install APEM QS Series LED Indicators, perfect for industrial and control panels. Available in various sizes and colors, these indicators support voltages from 2VDC to 220VAC, with options for standard and high-brightness LEDs suitable for daylight viewing. Featuring diffused lenses, durable polycarbonate bodies, gold or silver plated terminals, and long lifespan of 100,000 hours, they are UL recognized, ensuring safety and quality. Enhance your projects with these versatile, durable, and energy-efficient LED indicators, now available for purchase online for quick and convenient delivery.
Order your APEM QS Series LED Indicator with high brightness white lens and durable polycarbonate body today and enhance your control panels with reliable lighting solutions.
