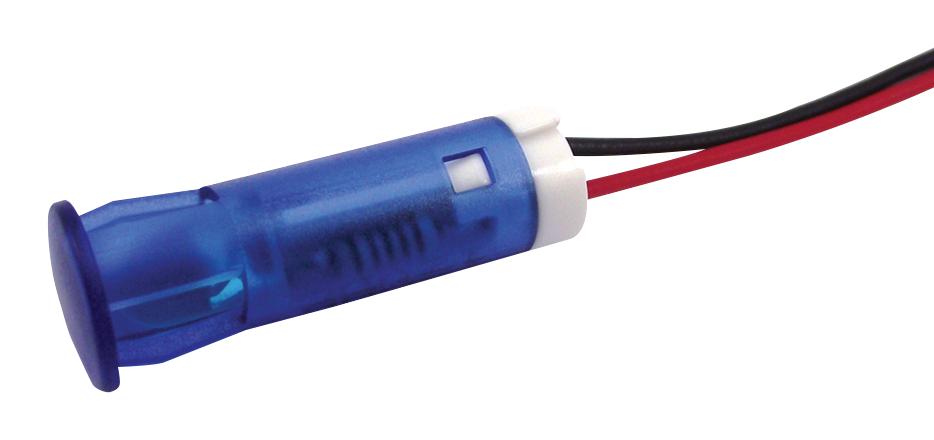

Apem QS83XXHB110 Panel Mount LED Indicators
The QS series snap-in panel mount LED indicators offer a reliable and versatile solution with sizes ranging from 6mm to 12mm. These LEDs feature front panel snap-in mounting, eliminating the need for additional hardware. Available in standard and high brightness options, they provide daylight visibility and a long life expectancy of 100,000 hours. Suitable for various panel thicknesses up to 1.6 mm, the indicators operate within -30 °C to +65 °C. They are made from durable molded polycarbonate and support multiple electrical configurations for various applications.
Apem QS83XXHB110 Panel Mount LED Indicators Specifications:
- Sizes: 6mm, 8mm, 10mm, 12mm
- Operating Temperature Range: -30 °C to +65 °C
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Max Panel Thickness: 0.8 to 1.6 mm
- Materials: Moulded polycarbonate
- Mounting: Snap-in front panel
- Electrical: Standard and high brightness LED options, voltages from 2.1 V to 110 VAC
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- Forward Voltage: 2V to 32V depending on color and brightness
- Luminous Intensity: 40 to 3700 mcd depending on type and size
- Wire Length: Typically 200 mm with specified gauge and terminal type
Buy the Innovative QS Series LED Indicators – Reliable Panel Mount for Industrial Applications
Secure your QS Series snap-in panel mount LED indicators online today. With sizes from 6mm to 12mm, available in multiple colors and brightness levels, these LEDs ensure reliable visibility in industrial environments. Easy to install, they feature durable polycarbonate construction, supporting panel thickness up to 1.6 mm. Ideal for electrical control panels, machinery, and instrumentation, the QS series offers long-lasting performance, voltage options from 2.1 V to 110 VAC, and a lifespan of up to 100,000 hours. Shop now for quick delivery!
Order your QS Series LED Indicators today and give your industrial projects the dependable lighting solution they deserve with high brightness and durable design.
Frequently Asked Questions
Where can I buy Apem QS83XXHB110?
You can click on the BUY or RFQ button to purchase QS83XXHB110 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS83XXHB110?
You can download the QS83XXHB110 datasheet or visit the Apem website for support.
Who is the manufacturer of QS83XXHB110?
Apem
