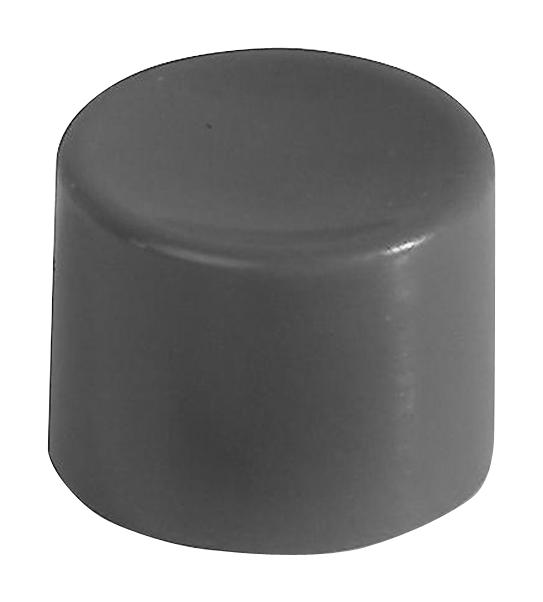

Apem U902 Momentary Pushbutton Switch
This product is a momentary pushbutton switch series designed for industrial control applications. It features two case lengths, three electrical functions, and multiple sealing options for dust and water resistance. Made with high-quality materials including thermoplastic, brass, and silver or gold-plated contacts, it offers a maximum current of 1A at 30 VDC and a high electrical life of 250,000 cycles. Suitable for panel mounting with various terminal options and a durable design for operating temperatures from -30°C to +65°C, ensuring reliability in demanding environments.
Apem U902 Momentary Pushbutton Switch Specifications:
- Max. current/voltage rating with resistive load: silver contact 1A 30 VDC, gold plated 100mA 30 VDC
- Initial contact resistance: 50 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 1,000 Vrms between terminals, 1,500 Vrms between terminals and frame
- Electrical life: 250,000 cycles
- Total travel: 13mm for Function 3, 2mm for Function 2, 0.9mm for Function 5
- Operating temperature: -30°C to +65°C
- Case: thermoplastic UL94-VO
- Actuator: polyamide, glass filled
- Bushing: brass, nickel plated
- Contacts: silver or gold plated brass
- Terminal seal: epoxy
- Mounting hardware: 2 hex nuts, 1 lockwasher
- Bushing diameter: 16 (.630) inches
- Sealing options: epoxy sealed terminals, front panel sealing by two O-rings
- Contact materials: silver or gold plated brass
- Available with quick-connect terminals and various mounting options
Buy the Buy Industrial Switch Series U902 Online
Order the U902 series momentary pushbutton switches online today for a reliable solution in industrial control. Featuring high durability, multiple sealing options, and various electrical functions, these switches are ideal for automation and control panels. Made from high-quality materials with brass bushings and silver or gold-plated contacts, they withstand demanding conditions from -30°C to +65°C. With a long electrical life of 250,000 cycles, easy mounting, and versatile terminal options, purchase online to ensure quick delivery and expert support for your control applications.
Buy U902 momentary pushbutton switches now and ensure reliable control in demanding industrial environments with durable and sealed construction.
Frequently Asked Questions
Where can I buy Apem U902?
You can click on the BUY or RFQ button to purchase U902 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part U902?
You can download the U902 datasheet or visit the Apem website for support.
Who is the manufacturer of U902?
Apem
