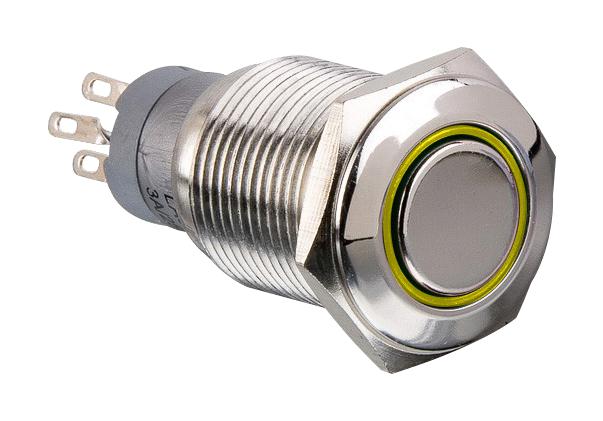

Arcolectric - Bulgin MP00451E1AM012S Illuminated Latching Switch
This stainless steel illuminated latching switch features a compact 18mm bezel diameter with front panel mounting, suitable for industrial interfaces requiring robust and reliable operation. It offers high switching capacity of 3A at 250V ac with separate LED indicators for various illumination colors including red, green, amber, and blue. Designed to operate within a temperature range of -20°C to +55°C, it ensures durability with a stainless steel body, nickel-plated brass contacts, and an IP67 sealing grade for corrosion resistance. Easy to install with a rear nut fixing torque of 42Nm, it is ideal for demanding industrial applications.
Arcolectric - Bulgin MP00451E1AM012S Illuminated Latching Switch Specifications:
- Bezel Diameter: 18mm
- Fixing Hole Diameter: 16mm
- Rating: 3A, 250V ac
- Contact Resistance: 50mΩ max. @ 1A, 2V
- Insulation Resistance: >2.0kVac
- Dielectric Strength: >2.0kVac
- Operating Temp Range: -20°C to +55°C
- Mechanical Operations: 200,000 cycles min
- Electrical Operations: 30,000 cycles min
- Rear Nut Fixing Torque: 42Nm
- Materials: Nylon mouldings, brass silver plated contacts, stainless steel switch body & ring
- Sealing Grade: IP67, IP40 variants available
- LED Colors: Red, Green, Amber, Blue
- LED Voltage: 12Vdc / 220Vdc
- Switching Type: D.P.C.O. Latching Action
- Mounting Style: Front panel mounting
- Certifications: Compliant with industrial standards
Buy the Bulgin Series Illuminated Latching Switch: MP00451E1AM012S
Discover the Bulgin stainless steel illuminated latching switch, engineered for industrial environments demanding durability and precise control. Featuring a robust 18mm bezel, IP67 sealing, and separate LED indicators in multiple colors, it delivers high reliability with 3A switching capacity at 250V ac. Easy installation with a rear nut torque of 42Nm ensures secure fitting in demanding settings. Ideal for automation, control panels, and hazardous environments, this switch combines rugged construction with high performance, ensuring long-lasting operation in extreme conditions.
Buy Bulgin MP00451E1AM012S now and experience unmatched reliability, sharp illumination, and durable design perfect for industrial and control systems.
Frequently Asked Questions
Where can I buy Arcolectric - Bulgin MP00451E1AM012S?
You can click on the BUY or RFQ button to purchase MP00451E1AM012S from an authorized Arcolectric - Bulgin distributor.
How do I troubleshoot issues or seek technical support for part MP00451E1AM012S?
You can download the MP00451E1AM012S datasheet or visit the Arcolectric - Bulgin website for support.
Who is the manufacturer of MP00451E1AM012S?
Arcolectric - Bulgin
