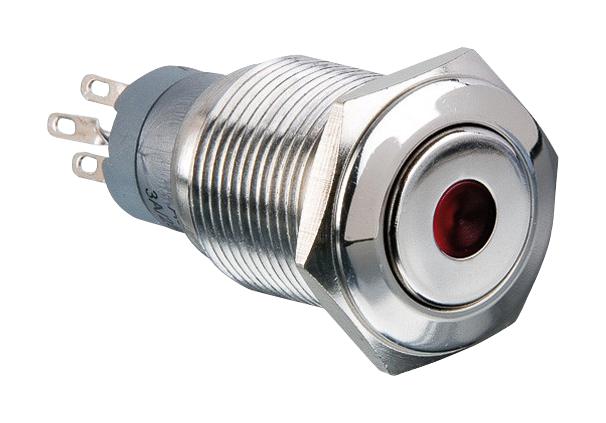

Arcolectric - Bulgin MP00451E2RD220S Stainless Steel Illuminated Switch
This stainless steel illuminated latching switch features a robust 18mm bezel diameter and front panel mounting. It offers three LED color options—red, green, amber, or blue—and operates at 12V or 220V. Designed for industrial applications, it provides IP67 sealing for protection against dust and water, with a maximum switch rating of 3A at 250V ac. Constructed from durable nylon and polished stainless steel, it ensures reliable performance in harsh environments, with high operation counts and resistance to temperature variations from -20°C to +55°C.
Arcolectric - Bulgin MP00451E2RD220S Stainless Steel Illuminated Switch Specifications:
- Bezel Diameter: 18mm
- Fixing Hole Diameter: 16mm
- Sealing: IP67
- Max Rating: 3A, 250V ac
- Contact Resistance: 50mΩ max. @ 1A, 2V
- Insulation Resistance: >2.0kVac
- Dielectric Strength: >2.0kVac
- Operating Temperature Range: -20°C to +55°C
- Mechanical Operations: 200,000 minimum
- Electrical Operations: 30,000 minimum
- Rear Nut Fixing Torque: 42Nm
- Materials: Mouldings - Nylon, Switch Body & Button - Stainless Steel (Polished), Contacts - Brass, Silver Plated
- Variants: Dot and Ring illuminated versions with separate LED terminals
- Color Options: Red, Green, Amber, Blue
- Voltage Options: 12V or 220V
Buy the Buy Bulgin Stainless Steel Switch Part Number MP00451E2RD220S Online
Purchase the Bulgin stainless steel illuminated latching switch online today for robust performance and sealing protection suitable for harsh industrial environments. Featuring a durable 18mm bezel and multiple LED color options, this switch offers a maximum rating of 3A at 250V ac with LED indicators for easy operation. Its IP67 sealing ensures dust and water resistance, making it ideal for demanding applications. Enjoy fast delivery, secure checkout, and reliable performance with Bulgin's trusted switching solutions designed to withstand extreme conditions.
Buy Bulgin MP00451E2RD220S now and experience unmatched reliability and high durability with IP67 sealing for industrial environments.
Frequently Asked Questions
Where can I buy Arcolectric - Bulgin MP00451E2RD220S?
You can click on the BUY or RFQ button to purchase MP00451E2RD220S from an authorized Arcolectric - Bulgin distributor.
How do I troubleshoot issues or seek technical support for part MP00451E2RD220S?
You can download the MP00451E2RD220S datasheet or visit the Arcolectric - Bulgin website for support.
Who is the manufacturer of MP00451E2RD220S?
Arcolectric - Bulgin
