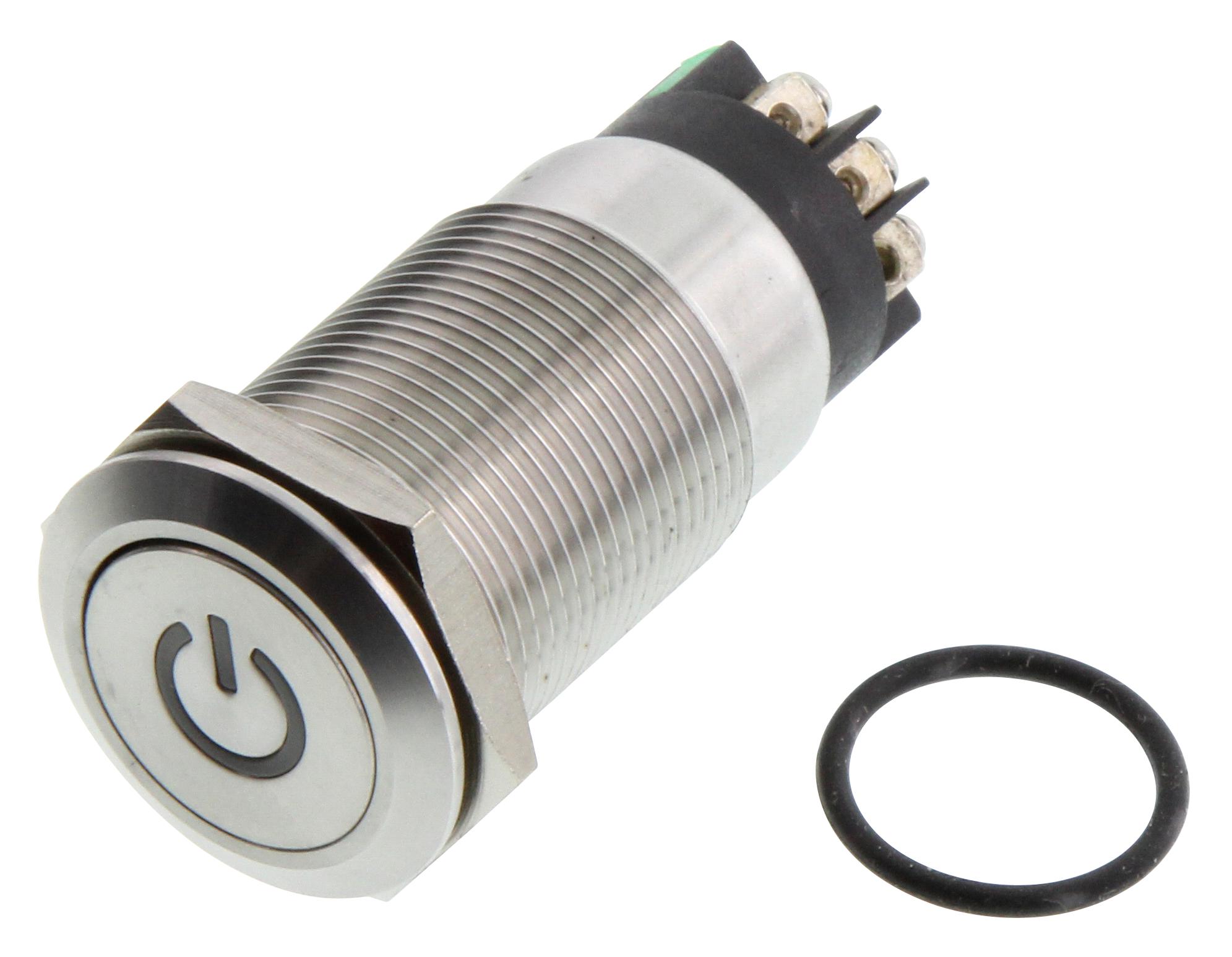

Arcolectric - Bulgin MPI005PTELSGN12 Vandal Resistant Illuminated Switch
The 19mm Stainless Steel Illuminated Vandal Resistant switch offers durable construction with IP65 sealing for demanding environments. It features a stainless steel body, illuminated LEDs, and options for momentary or latching switching. Suitable for control panels and industrial applications, it provides reliable operation with a maximum rating of 5A at 12VDC or 24VDC. The switch is available with pin or screw terminals, easy rear nut fixing, and a 22mm bezel diameter. Designed for toughness and high durability, it withstands harsh conditions and frequent operation.
Arcolectric - Bulgin MPI005PTELSGN12 Vandal Resistant Illuminated Switch Specifications:
- Bezel Diameter: 22mm
- Hole Diameter: 19.2mm + 0.2mm
- Switching: SPCO, Momentary or Latching
- Rating: 5A at 12VDC/24VDC, 3A at 250VAC, 5A at 125VAC
- Contact Resistance: Max. 1Ω at 1A, 2V
- Insulation Resistance: >1000 MΩ at 500Vdc
- Dielectric Strength: >2.0kVac
- Operating Temperature: -25°C to +55°C
- Mechanical Operations: Minimum 1,000,000
- Electrical Operations: Minimum 50,000
- Materials: Mouldings Polycarbonate, Switch Body Stainless Steel/Aluminium Alloy, Contacts Silver, Terminations Brass/Gold Plated
- Sealing: IP65 (Momentary variants IP67 upon request)
- Fixing: Rear Nut, Fixing Torque 0.8 Nm
Buy the Bosch Series Vandal Resistant Illuminated Switch: MPI005PTELSGN12
Order the Bosch Vandal Resistant Illuminated Switch online today and get high durability, IP65 sealing, and reliable operation for industrial environments. This stainless steel switch features illuminated indicators, easy rear nut fixing, and a compact 22mm bezel diameter, making it ideal for control panels, machinery, and rugged applications. Designed for lifetime performance with a maximum rating of 5A at 12VDC/24VDC and 3A at 250VAC, it ensures safety, longevity, and ease of installation—perfect for professionals needing a tough, dependable switch.
Buy Bosch MPI005PTELSGN12 now and experience unmatched reliability and high durability in demanding environments.
Frequently Asked Questions
Where can I buy Arcolectric - Bulgin MPI005PTELSGN12?
You can click on the BUY or RFQ button to purchase MPI005PTELSGN12 from an authorized Arcolectric - Bulgin distributor.
How do I troubleshoot issues or seek technical support for part MPI005PTELSGN12?
You can download the MPI005PTELSGN12 datasheet or visit the Arcolectric - Bulgin website for support.
Who is the manufacturer of MPI005PTELSGN12?
Arcolectric - Bulgin
