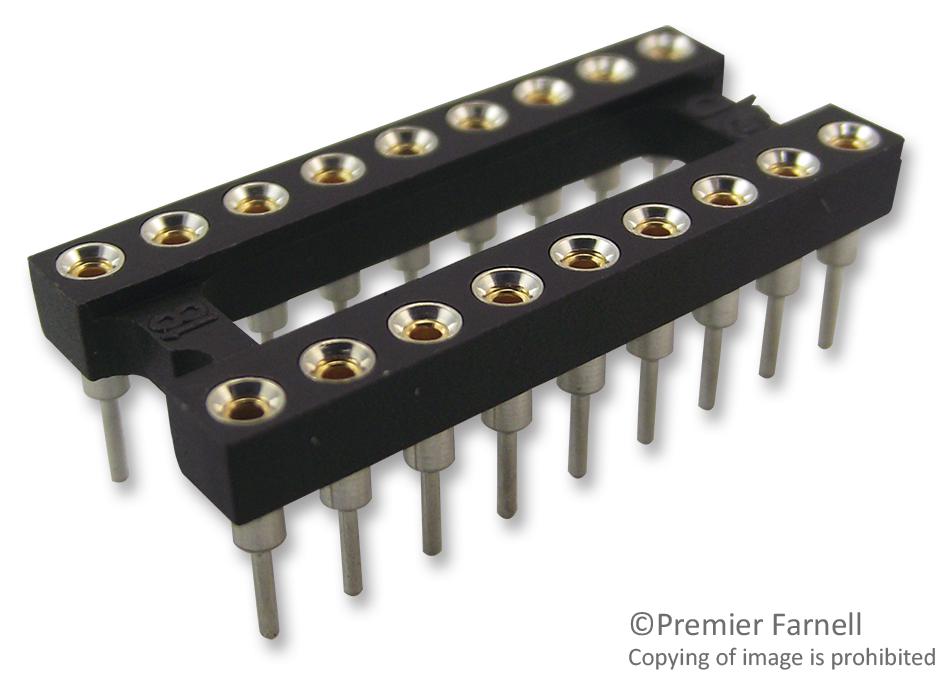

ARIES ELECTRONICS 18351810 Open Frame Socket
The Series 518 open frame sockets with solder pin tails are designed for efficient use of circuit board space and optimized cooling. They are compatible with automatic insertion equipment and feature optional side-to-side and end-to-end stacking. Made from black UL 94V-0 glass-filled nylon with brass alloy pins plated in gold, tin, or tin-lead for reliable contact and corrosion resistance. Capable of handling 3 amps current, operating up to 221°F, and accommodating various lead lengths and diameters. They are ideal for versatile electronic assembly applications requiring durable, stackable sockets.
ARIES ELECTRONICS 18351810 Open Frame Socket Specifications:
- Body Material: black UL 94V-0 glass-filled nylon
- Pin Body: Brass Alloy 360 1/2-hard, plated in gold, tin, or tin-lead
- Contact Material: Beryllium-Copper Alloy
- Contact Plating: 200p min. Tin/Lead or Gold, 10p min. Gold over Nickel
- Current Rating: 3 amps
- Operating Temperature: up to 221°F (105°C) for Tin and Tin/Lead, 257°F (125°C) for Gold
- Insertion Force: 180 grams/pin
- Withdrawal Force: 90 grams/pin
- Mounting Guidelines: PCB hole size for solder pin is 0.030 +0.002 inches
- Lead Compatibility: Accepts lead lengths from 0.100 inches and diameters up to 0.025 inches
- Stackable: Side-to-side and end-to-end
- Available Platings: Gold, Tin, Tin-Lead, heavy gold optional
Buy the Buy Industry Equipment Open Frame Socket Part Number 18351810 Online
Purchase the reliable open frame socket online today and enhance your electronic project with durable, stackable, and corrosion-resistant connection solutions. Featuring gold or tin plating, these sockets are designed for automatic insertion and efficient board utilization. Handle currents up to 3 amps and operate efficiently at high temperatures up to 221°F. Suitable for lead lengths from 0.100 inches and various diameters, their versatile design supports a range of electronic assembly needs. Buy now for quality and dependable performance.
Buy Industry Equipment 18351810 now and experience unmatched reliability and performance with versatile, stackable socket solutions for electronic assemblies.
Frequently Asked Questions
Where can I buy ARIES ELECTRONICS 18351810?
You can click on the BUY or RFQ button to purchase 18351810 from an authorized ARIES ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 18351810?
You can download the 18351810 datasheet or visit the ARIES ELECTRONICS website for support.
Who is the manufacturer of 18351810?
ARIES ELECTRONICS
