ARIES ELECTRONICS 28657410 Test Socket
The Series X57X Quick-Release Zero-Insertion-Force DIP Test Socket is designed for easy and reliable device testing with flexible mounting options. Its universal socket accepts devices on centers from .300 to .600 inches, accommodating pin counts from 24 to 48. Crafted with either UL 94V-0 Glass Filled PPS or high-temp PEEK bodies, it features stainless steel handles and adaptable mounting on either side. With contact materials including Beryllium Copper and Nickel Alloy, it supports up to 1 Amp current, with an insulation resistance of 1000 MOhms, withstands voltages of 1000 VAC, and offers a lifespan of 25,000 to 50,000 cycles, suitable for versatile electronic testing applications.
ARIES ELECTRONICS 28657410 Test Socket Specifications:
- Socket body options: Black UL 94V-0 Glass Filled PPS or Natural PEEK for high-temp models
- Handle material: Stainless Steel, knob: Brass Alloy 360
- Contact materials: Beryllium Copper, Spinodal Alloy, Nickel Beryllium, or Nickel Boron
- Contact current rating: 1 Amp, Insulation resistance: 1000 MOhms minimum
- Dielectric withstanding voltage: 1000 VAC, Life cycle: 25,000 to 50,000 cycles
- Operating temperature: -67°F to 221°F (-55°C to 105°C) for Tin plating, up to 482°F (250°C) for high-temp versions
- Accepts leads: .015-.035 inches wide, .110-.280 inches long, retention force: 55 grams per pin
- Pin count range: 24, 28, 32, 36, 42, 44, 48, with options for tin, tin/lead, gold, nickel boron plating
- Mounting considerations: Compatible with Aries test socket receptacle XX-6556-XX, configurable handle sides

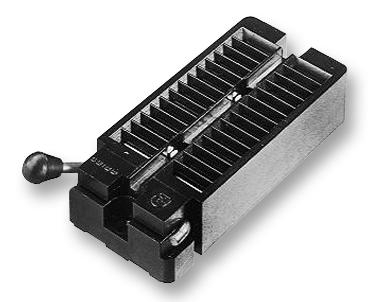

Buy the Buy Aries Series X57X Quick-Release Test Socket Part Number 28657410 Online
Secure your electronic testing needs with the Aries Series X57X Quick-Release Test Socket. Designed for quick and easy device insertion and removal, it supports a wide range of pin counts and center spacings from .300 to .600 inches. Made with durable materials like UL 94V-0 PPS and high-temp PEEK, it features stainless steel handles and versatile mounting options. With a current rating of 1 Amp and an impressive cycle life of up to 50,000, this socket is ideal for reliable, long-term testing in demanding applications.
Order your Aries Series X57X Quick-Release DIP Test Socket today and ensure reliable, versatile testing for your electronics projects with high-temp and gold-plated options.
Frequently Asked Questions
Where can I buy ARIES ELECTRONICS 28657410?
You can click on the BUY or RFQ button to purchase 28657410 from an authorized ARIES ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 28657410?
You can download the 28657410 datasheet or visit the ARIES ELECTRONICS website for support.
Who is the manufacturer of 28657410?
ARIES ELECTRONICS
