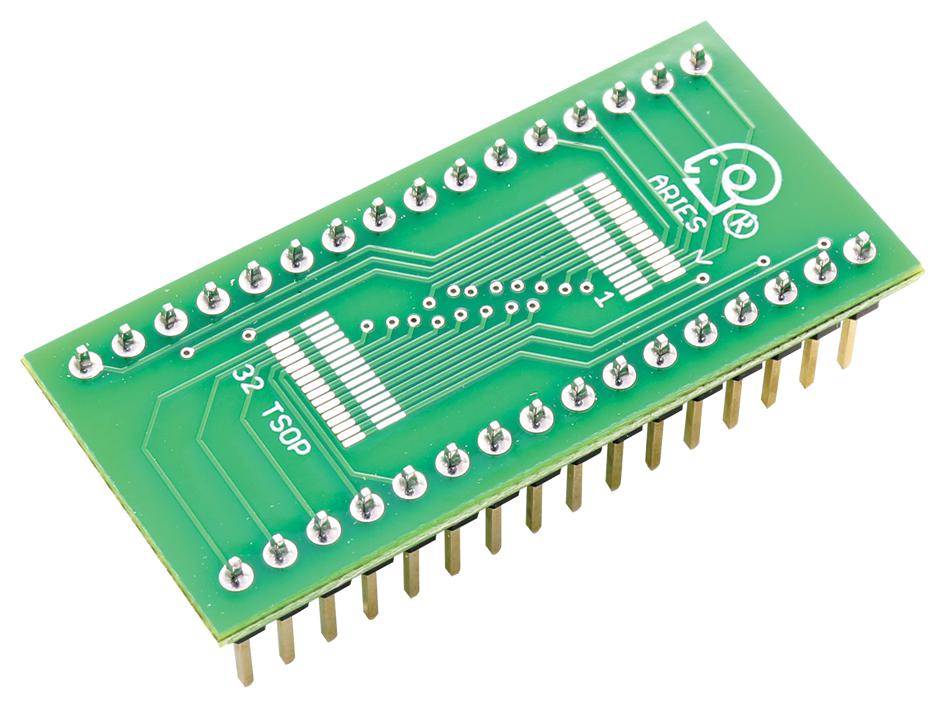

ARIES ELECTRONICS LCQTSOIC32 Socket Adapter
The LCQTSOIC32 is a socket adapter designed for small outline packages such as SOT23, SOIC, MSOP, and TSSOP, facilitating quick and reliable prototyping on standard breadboards and breakout boards. Constructed from UL 94V-0 rated FR-4 with 0.062 inches thickness and gold-flashed brass pins, it ensures durability and high conductivity. Operating efficiently within -55°C to +125°C, it supports various package sizes with precise pin and pad dimensions, making it ideal for electronic testing and development workflows in industrial settings.
ARIES ELECTRONICS LCQTSOIC32 Socket Adapter Specifications:
- Board Material: UL 94V-0 rated FR-4, 0.062 inches thick
- Pin Material: Brass 360 1/2-hard, UNS C36000, ASTM B16-00
- Pin Plating: Au Flash
- Operating Temperature: -55°C to +125°C
- Package Compatibility: SOT23, SOIC, MSOP, TSSOP
- Pin Insulator: Polyester, UL 94V-0
- Pin Dimensions: Vary by package, e.g., SOIC32 dimensions including 0.362 inches length and 0.050 inches pad width
- Recommended PCB Hole Pattern: 0.54 inches ±0.08, 0.026 inches ±0.008 diameter holes
- Connector Dimensions: Refer to package-specific parameters, e.g., Dim. A 0.4 inches for SOIC32
- Tolerances: +0.0085 inches (0.13 mm) unless otherwise specified
Buy the Aries LCQTSOIC32 – Reliable Socket Adapter for Industrial Applications
Enhance your electronic development with the Aries LCQTSOIC32 socket adapter, designed for quick assembly and reliable connections in industrial prototyping. Crafted from UL 94V-0 rated materials with precise dimensions and gold-plated brass pins, it supports a wide temperature range of -55°C to +125°C. Its compatibility with SOT23, SOIC, MSOP, and TSSOP packages makes it a versatile tool for testing and development. Easy to use, durable, and highly conductive, this adapter accelerates your project workflows. Order now online for fast delivery and top performance.
Buy Aries LCQTSOIC32 now and experience unmatched reliability and performance in electronic prototyping and testing tasks.
Frequently Asked Questions
Where can I buy ARIES ELECTRONICS LCQTSOIC32?
You can click on the BUY or RFQ button to purchase LCQTSOIC32 from an authorized ARIES ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part LCQTSOIC32?
You can download the LCQTSOIC32 datasheet or visit the ARIES ELECTRONICS website for support.
Who is the manufacturer of LCQTSOIC32?
ARIES ELECTRONICS
