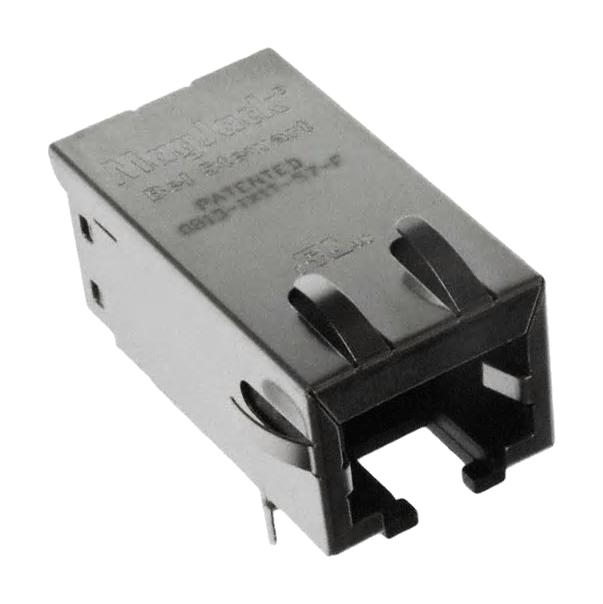

BEL MAGNETIC SOLUTIONS 08131X1T57F PoE MagJack
The Power over Ethernet MagJack module 0813-1X1T-57-F is a single port integrated connector designed for reliable data and power transmission in networking applications. Made with thermoplastic PBT housing with UL 94V-0 flammability rating, it features gold-plated contacts, and a metal shield for electromagnetic interference protection. Operating within 0°C to +70°C, it ensures robust performance for diverse environments. The module's precise electrical characteristics include impedance matching, isolation, and leakage inductance, making it ideal for high-speed data transfer and PoE applications.
BEL MAGNETIC SOLUTIONS 08131X1T57F PoE MagJack Specifications:
- Housing Material: Thermoplastic PBT with UL 94V-0 flammability rating
- Contact Plating: 50 micro-inch hard gold with nickel underplate
- Operating Temperature: 0°C to +70°C
- Electrical Characteristics: Turns Ratio, Insertion Loss, Return Loss, Leakage Inductance, D.C. Resistance, Interwinding Capacitance, Crosstalk, and Sixty Volt Isolation Voltage
- Max Current: 350mA @ 57 VDC continuous, 500mA @ 57 VDC for 200 milliseconds
- Maximum Voltage: 2250 VDC insulation voltage
- Mechanical Dimensions: PCB footprint with pin positions at 0.635 inches by 0.500 inches, mounting hole spacing as specified
- Shielding: Metal shield with tin/lead plating for EMI protection
- Connector Type: RJ45 8-pin with gold contacts
- Solderability: Compliant with MIL STD. 202, Method 208
- Packing: 40 pieces per tray, 10 trays per carton, with cardboard layers between trays
Buy the Bel Fuse Series PoE MagJack: 0813-1X1T-57-F
Discover the reliable and high-performance Power over Ethernet MagJack module 0813-1X1T-57-F. Designed with durable thermoplastic housing and gold-plated contacts, this single port connector ensures high-speed data transfer and efficient power delivery for network applications. Its rugged construction supports operation from 0°C to +70°C, providing stability in various environments. Ideal for PoE-enabled systems, it features electromagnetic shielding and complies with RoHS standards, guaranteeing safety and environmental sustainability. Purchase online today to enhance your networking infrastructure with this trusted, professionally engineered component.
Get Bel Fuse 0813-1X1T-57-F PoE MagJack today—built for high-speed data transfer, reliable power delivery, and long-lasting durability.
Frequently Asked Questions
Where can I buy BEL MAGNETIC SOLUTIONS 08131X1T57F?
You can click on the BUY or RFQ button to purchase 08131X1T57F from an authorized BEL MAGNETIC SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 08131X1T57F?
You can download the 08131X1T57F datasheet or visit the BEL MAGNETIC SOLUTIONS website for support.
Who is the manufacturer of 08131X1T57F?
BEL MAGNETIC SOLUTIONS
