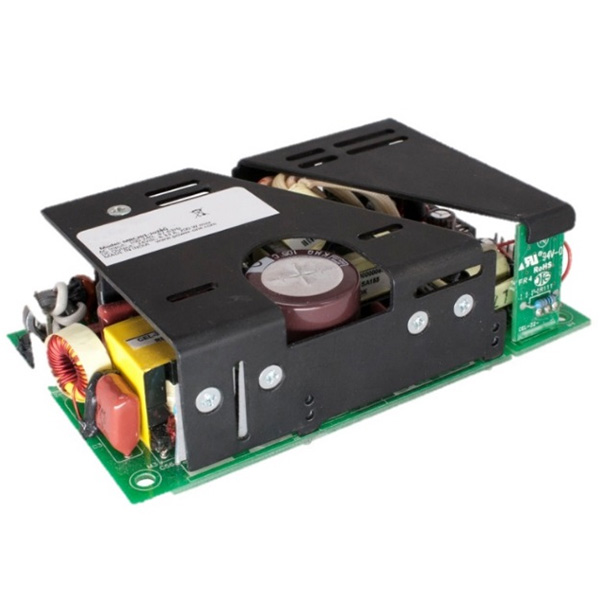

BEL POWER SOLUTIONS ABC2011024G 200W Open Frame Power Supply
The ABC201 series of open-frame power supplies from BEL POWER SOLUTIONS delivers 200W of output power with a wide universal 90-264 VAC input range. Its high efficiency and power density minimize power loss, enhancing reliability and simplifying thermal management. Ideal for telecom, datacom, industrial equipment, and other applications, the ABC201 series meets regulatory approvals for environmentally-friendly end products. Features include remote sense, output voltage adjustability, and IEC protection class options.
BEL POWER SOLUTIONS ABC2011024G 200W Open Frame Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 2.4 A max.
- Input Current (230 VAC): 1.2 A max.
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current: < 150 µA (120 VAC) / < 300 µA (230 VAC)
- No Load Power: 0.8 W
- Switching Frequency: 35 to 250 kHz (typical 90 kHz)
- Output Voltage: 5 V to 48 V
- Output Power: 160 to 200 W
- Fan Output: 12 V
- Efficiency: > 88%
- Hold Up Time: 10 ms
- Power Factor: 0.99 (120 VAC) / 0.95 (230 VAC)
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3 %
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Short Circuit Protection: Automatic recovery
- Isolation Voltage: Min. 4000 VDC
- Safety Standards: EN / IEC / UL 62368-1 (Ed.3)
- Agency Approvals: Nemko, UL
- CE mark: Complies with LVD Directive
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 85°C
- Humidity: Non Condensing, 95%
- Altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- Reliability: 1.6 million hours (MTBF)
