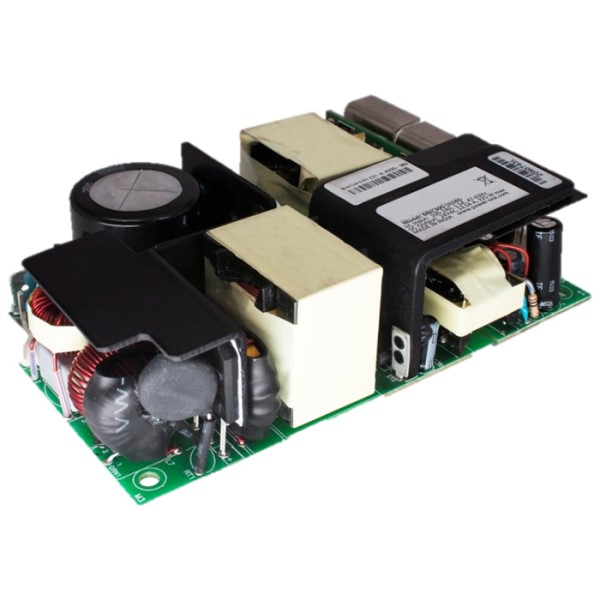

BEL POWER SOLUTIONS ABC3001T15G 300W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC300 series offers a compact and efficient power solution for a wide range of applications. With a 300W output power and a wide universal input voltage range (90-264 VAC), this open-frame power supply is ideal for telecom, datacom, industrial equipment, instrumentation, lighting, and robotics. Its high efficiency and power density minimize power loss and facilitate easier thermal management, contributing to higher reliability and environmentally friendly designs. The ABC300 series includes features like a 5V standby output, 12V fan output, inhibit and power good signals, and various IEC protection class options.
BEL POWER SOLUTIONS ABC3001T15G 300W Open Frame Power Supply Specifications:
- Form Factor: 5 x 3 x 1.5 inch
- Convection Cooled Power: 200 W
- Minimum Load: 0.0 A
- Standby Output: 5 V
- Fan Output: 12 V
- Protection Class: Class I (J4 Earth pin) or Class II (-2 suffix)
- Compliance: IEC / EN / UL 62368-1
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 to 63 Hz
- Input Current (120 VAC): 3.2 A max
- Input Current (230 VAC): 1.65 A max
- No Load Power: 0.8 W
- Inrush Current (120 VAC): 35 A max
- Inrush Current (230 VAC): 65 A max
- Leakage Current (120 VAC): < 150μA
- Leakage Current (230 VAC): < 300μA
- Switching Frequency: 80 kHz typical
- Output Voltage: 12 to 48 V
- Output Power: 200 to 325 W
- Efficiency: 88% typical (120 VAC), 92% typical (230 VAC)
- Hold Up Time: 10 ms
- Power Factor: 0.98 (120 VAC), 0.95 (230 VAC)
- Line Regulation: ± 0.5 %
- Load Regulation: ± 2 %
- Transient Response: < 10 %, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Tolerance: ± 1 %
- Voltage Output Adjustment: ± 3 %
- Over Voltage Protection: Automatic recovery (110 to 150 %)
- Over Current Protection: 110 to 150 %
- Short Circuit Protection: Short term, automatic recovery
- Over Temperature Protection: Automatic Recovery (110° C)
- Cooling: Convection (140 W max), 200 W max with 300 LFM
