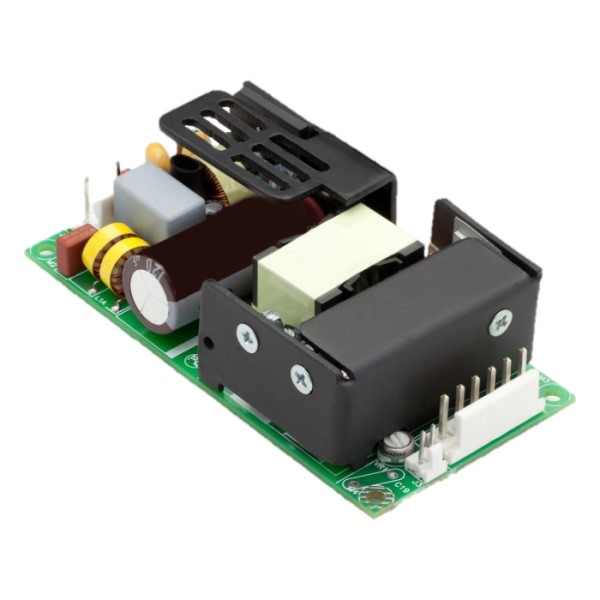

BEL POWER SOLUTIONS ABC601015G 60W AC-DC Power Supply
The BEL POWER SOLUTIONS ABC60 Series AC-DC open-frame power supplies deliver 60W of output power with a wide universal 90-264 VAC input range. Designed for high efficiency and power density, these power supplies minimize power loss, enhance reliability, and simplify thermal management. They are ideal for telecom, datacom, industrial equipment, robotics, and applied computing applications. The ABC60 series meets regulatory approvals for environmentally-friendly end products and is RoHS compliant.
BEL POWER SOLUTIONS ABC601015G 60W AC-DC Power Supply Specifications:
- Form Factor: 4 x 2 x 1.2 Inch (101.6 x 50.8 x 30.48 mm)
- Convection Cooled Power: 50 - 65 W
- Outputs: Single to Triple
- Efficiency: > 85%
- No Load Power: < 0.3 W
- Input Voltage: 90 - 264 VAC
- Input Frequency: 47 to 400 Hz
- Input Current (120 VAC): 1.5 A max.
- Input Current (230 VAC): 0.75 A max.
- Inrush Current (120 VAC): 30 A max.
- Inrush Current (230 VAC): 60 A max.
- Leakage Current (120 VAC): < 500 µA
- Leakage Current (230 VAC): <1000 µA
- Switching Frequency: 67 kHz
- Line Regulation: ± 0.3%
- Load Regulation: ± 5%
- Transient Response: < 5 ms
- Output Voltage Adjustment: ± 10%
- Over Current Protection: 130%
- Over Voltage Protection: 130%
- Isolation Voltage: 4000 VAC/VDC
- Safety Standards: UL 62368-1, CSA C22.2 No. 62368-1, EN 60950-1
- EMI Compliance: EN 55022-B, FCC Part 15 Level B
- Altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- MTBF: 1.87 million hours
Buy the ABC60-1015G BEL POWER SOLUTIONS 60W AC-DC Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS ABC60-1015G AC-DC power supply securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS ABC601015G?
You can click on the BUY or RFQ button to purchase ABC601015G from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ABC601015G?
You can download the ABC601015G datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of ABC601015G?
BEL POWER SOLUTIONS
