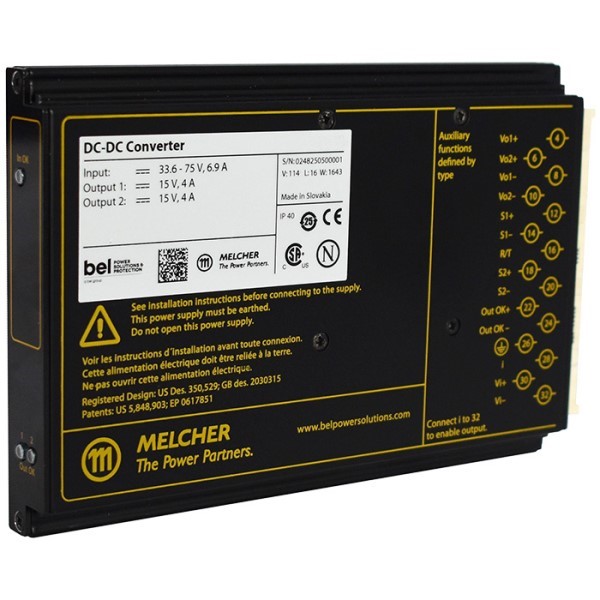

BEL POWER SOLUTIONS BP16019RG DC-DC Converter
The BEL POWER SOLUTIONS BP1601-9RG is a highly compact DC-DC converter designed for rugged environments, particularly railway applications. It incorporates essential input and output filters, signaling, and protection features. Key features include flexible output power, high efficiency, excellent reliability, low ripple and RFI noise, full isolation, negligible inrush current, and over-temperature protection. The converter's modular design allows for series or parallel connection, enabling n+1 redundant operation. It is suitable for 19" rack systems and chassis mounting, offering a space-saving solution without compromising reliability. The BP1601-9RG is designed to meet stringent European railway standards and safety approvals.
BEL POWER SOLUTIONS BP16019RG DC-DC Converter Specifications:
- Input Voltage Range: 16 - 150 VDC
- Output Voltage: Up to 96 V
- Output Power: 90 - 192 Watt
- Efficiency: Up to 90%
- Inrush Current: Extremely low
- Case Size: 4 TE (20 mm)
- Protection: Over-temperature, input over/undervoltage lockout
- Standards: EN 50155, EN 50121-3-2, IEC/EN 62368-1, UL/CSA 60950-1
- Connector Type: H15 (or H15S2)
Buy the BP1601-9RG BEL POWER SOLUTIONS DC-DC Converter | myMectronic
Purchase the BEL POWER SOLUTIONS BP1601-9RG DC-DC Converter securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS BP16019RG?
You can click on the BUY or RFQ button to purchase BP16019RG from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BP16019RG?
You can download the BP16019RG datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of BP16019RG?
BEL POWER SOLUTIONS
