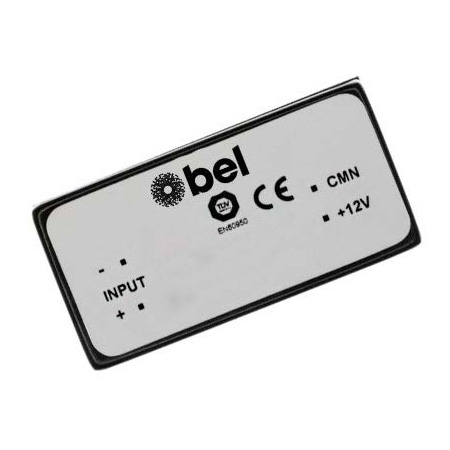

BEL POWER SOLUTIONS DFC10E12S12 Isolated DC-DC Converter
The BEL POWER SOLUTIONS DFC10 Series provides power converter solutions designed for commercial and industrial requirements. With a power density of up to 11 watts per cubic inch, overcurrent protection, and a five-sided shielded copper case, the DFC10 series meets rigorous needs. The 220 kHz operating frequency allows for increased power density while including adequate heat sinking and input/output filtering. This eliminates the need for external components in most applications. The DFC10E12S12 model specifically provides 12V output at 900mA.
BEL POWER SOLUTIONS DFC10E12S12 Isolated DC-DC Converter Specifications:
- Input Voltage Range: 9-18 VDC
- Output Voltage: 12 VDC
- Output Current: 900 mA
- Power Density: Up to 11 watts per cubic inch (0.67 watts per cm³)
- Efficiency: Up to 83%
- Isolation Voltage: 700 V (1544 V for 48 V converters)
- Operating Temperature Range: -40 to 90 °C
- Storage Temperature Range: -55 to 105 °C
- Switching Frequency: 220 kHz
- RoHS Compliant: Yes
- MTBF: 800,000 hours
- Weight: 1.0 oz (28 g)
Buy the DFC10E12S12 BEL POWER SOLUTIONS Isolated DC-DC Converter | myMectronic
Purchase the BEL POWER SOLUTIONS DFC10E12S12 securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS DFC10E12S12?
You can click on the BUY or RFQ button to purchase DFC10E12S12 from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part DFC10E12S12?
You can download the DFC10E12S12 datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of DFC10E12S12?
BEL POWER SOLUTIONS
