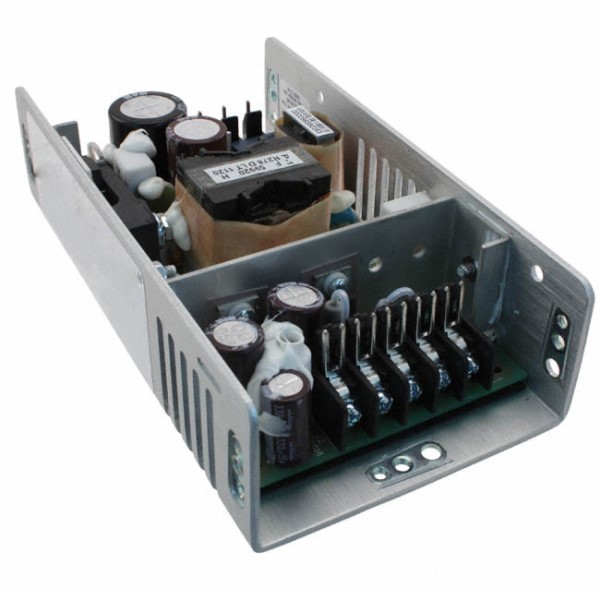

BEL POWER SOLUTIONS MAP554002G Power Supply Module
The BEL POWER SOLUTIONS MAP55 series of power supplies is designed to deliver reliable and tightly regulated DC power for a wide range of industrial applications. These power supplies utilize a thermally efficient U-channel chassis design and offer integration flexibility with metric and SAE mounting inserts. They comply with EMC product standard EN 61204-3 and are RoHS compliant, bearing the CE Mark. The MAP55 series is suitable for applications requiring a compact footprint and wide input voltage range.
BEL POWER SOLUTIONS MAP554002G Power Supply Module Specifications:
- Input Voltage - AC: 90-175/132-264 VAC
- Input Frequency: 47-63 Hz
- Brown Out Protection: 90 VAC
- Hold-up Time: 20 ms
- Input Current: 1.6 ARMS
- Input Protection: Internally located AC input line fuse
- Inrush Surge Current: 38 APK
- Operating Frequency: 22-180 kHz
- Efficiency: 73% typical
- Minimum Loads (MAP55-1012G): 0.21 Amps
- Minimum Loads (MAP55-1024G): 0.11 Amps
- Minimum Loads (main channel): 0.50 Amps
- Ripple and Noise: See Model Selection Chart
- Output Power: 55 Watts
- Peak Output Power: 65 Watts
- Overshoot / Undershoot: <1%
- Regulation: See Model Selection Chart
- Transient Response: 500 μs
- Turn-on Delay: 1-4 Sec
- Turn-on Rise Time: 7 ms
- Overvoltage Protection: 5.6-6.8 V
- Overload Protection: Automatic recovery
