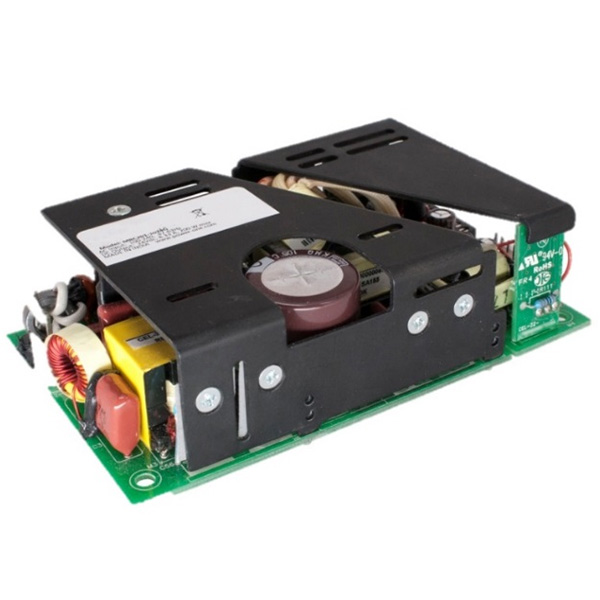

BEL POWER SOLUTIONS MBC2011T15G Medical Power Supply
The MBC201 series of medical power supplies from BEL POWER SOLUTIONS offers a robust and reliable solution for medical, telecom, datacom, and industrial applications. With a 200W output power and forced-air cooling, these power supplies are designed to meet stringent medical safety standards, including EN/IEC 60601-1, and provide 2 x MOPP isolation. They are available with various output voltages and connector options to suit diverse application requirements.
BEL POWER SOLUTIONS MBC2011T15G Medical Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 2.4 A max.
- Input Current (230 VAC): 1.2 A max.
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current: < 150 µA (120 VAC), < 300 µA (230 VAC)
- No Load Power: 0.8 W
- Output Voltage: 5 V to 48 V
- Output Power: 160 to 200 W
- Fan Output: 12 V
- Efficiency: > 88%
- Hold Up Time: 10 ms
- Power Factor: 0.99 (120 VAC), 0.95 (230 VAC)
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3 %
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Isolation Voltage: Min. 5900 VDC
- Safety Standards: EN 60601-1, IEC 60601-1 (ed.3)
- Agency Approvals: Nemko, UL, C-UL
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 85°C
