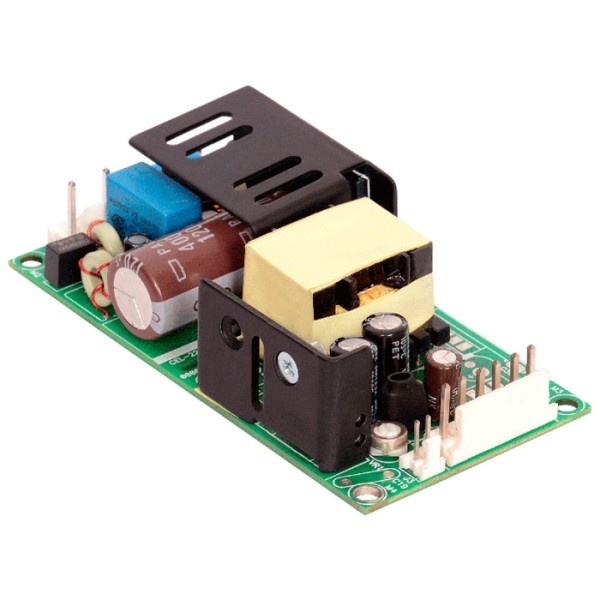

BEL POWER SOLUTIONS MBC401048G 40W Medical Power Supply
The BEL POWER SOLUTIONS MBC40-1048G is a versatile open-frame power supply specifically engineered for medical applications. It delivers 40W of output power with a wide 90-264 VAC input range, ensuring compatibility with various power sources. The MBC40 series is designed and certified to meet stringent medical safety standards (EN/IEC 60601-1), providing 2 x MOPP isolation for enhanced patient safety. Ideal for monitoring equipment, home health devices, surgical devices, dialysis pumps, and ultrasound machines, this power supply offers a reliable and efficient power solution for critical medical applications. Its compact size and high efficiency contribute to space-saving designs and reduced energy consumption.
BEL POWER SOLUTIONS MBC401048G 40W Medical Power Supply Specifications:
- input_voltage: 90 - 264 VAC
- input_frequency: 47 to 400 Hz
- input_current_120vac: 0.85 A max.
- input_current_230vac: 0.45 A max.
- no_load_power_single: < 0.3 W
- no_load_power_multi: < 0.5 W
- inrush_current_120vac: 30 A max.
- inrush_current_230vac: 60 A max.
- leakage_current_120vac: < 140 µA
- leakage_current_230vac: < 250 µA
- switching_frequency: Typical 67 kHz
- efficiency: Typical 85%
- hold_up_time: >10 ms
- output_power_derating: Derate output power linearly to 80% from 90 VAC to 80 VAC input.
- line_regulation: ± 0.3%
- load_regulation: ± 5%
- transient_response: < 5 ms
- set_point_tolerance: ± 5%
- output_voltage_adjustment: ± 10%
- over_current_protection: Typical above rating
- over_voltage_protection: Typical 130%
- short_circuit_protection: Short term, autorecovery
- cooling: Convection
- operating_temperature: -20 to 70°C
- storage_temperature: -40 to +70°C
- relative_humidity: Non Condensing
- altitude_operating: 10,000 ft.
- altitude_non_operating: 40,000 ft.
- reliability_mtbf: 1.87 million hours
- isolation_input_to_output: 4000 VAC
- isolation_input_to_ground: 1500 VAC
- safety_standards: EN 60601-1, IEC 60601-1 (ed.3), ANSI / AAMI ES 60601 - 1, CSA C22.2 No. 60601-1
- weight: 150 g (0.33 lbs.)
- dimensions: 101.6 x 50.8 x 30.48 mm (4 x 2 x 1.2 inch)
