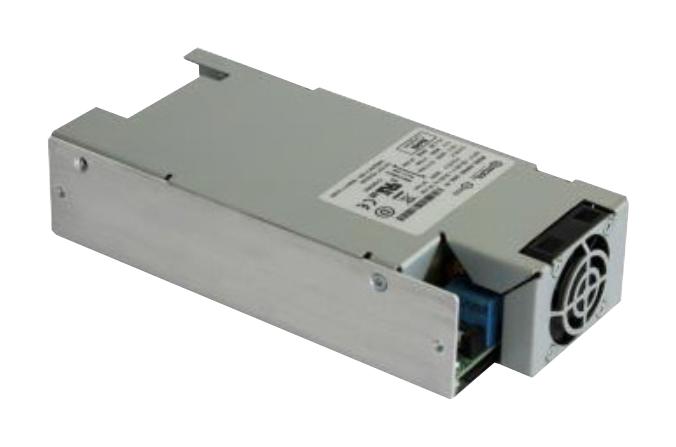

BEL POWER SOLUTIONS MBC4011024S Medical Power Supply
The MBC401 Series provides high-efficiency 400 W regulated power supplies suitable for medical and diagnostic equipment. These units support wide input voltages of 90-264 VAC, with low standby power consumption under 0.5 W. They feature multiple output voltages from 12 V to 48 V, plus 5 VSB standby, and incorporate protections like over temperature, over current, and short circuit. Available in low-profile packages, the supplies are compliant with international safety standards, including IEC 60601-1, and are designed for reliable operation in medical, imaging, respiratory, and aesthetic devices.
BEL POWER SOLUTIONS MBC4011024S Medical Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50/60 Hz
- Input Current: 2.5 A at 115 VAC, 1.25 A at 230 VAC
- Efficiency: Typical 94%
- Output Power Rating: 400 W
- Output Voltages: 12 V, 24 V, 28 V, 36 V, 48 V, with 5 VSB standby and auxiliary outputs
- Peak Power: 440 W
- Protection: Over temperature, over current, short circuit, and over voltage
- Cooling: Convection, forced air, or front-mounted fan options
- Dimensions: Open frame 84.4 x 170.5 x 41.0 mm, UC model 84.4 x 166.5 x 40.0 mm, S model 84.4 x 183.0 x 41.0 mm
- Weight: 575 g for standard, 525 g for UC, 670 g for T model
- Safety: IEC 60601-1, AAMI ES60601-1, UL, CSA, CB certified
- Environmental: Operating temperature -20°C to +50°C, no de-rating up to 50°C, humidity 0-95%, altitude up to 4000 m
Buy the Bel Series Power Supply: 400 W Medical Grade Power Supply - MBC4011024S
Enhance your medical devices with the Bel Series 400 W medical-grade power supply. Supporting wide input voltages of 90-264 VAC and offering multiple regulated outputs, this system guarantees reliable performance in diagnostic, imaging, and respiratory equipment. Its high efficiency of 94%, along with comprehensive protection features, ensures safety and durability. Available in low-profile packages suitable for various installations, this power supply complies with international standards including IEC 60601-1, making it ideal for critical healthcare applications. Purchase online today for dependable, certified power solutions.
Order your Bel Series MBC4011024S medical power supply today and ensure reliable performance for diagnostic and imaging applications.
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS MBC4011024S?
You can click on the BUY or RFQ button to purchase MBC4011024S from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MBC4011024S?
You can download the MBC4011024S datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of MBC4011024S?
BEL POWER SOLUTIONS
