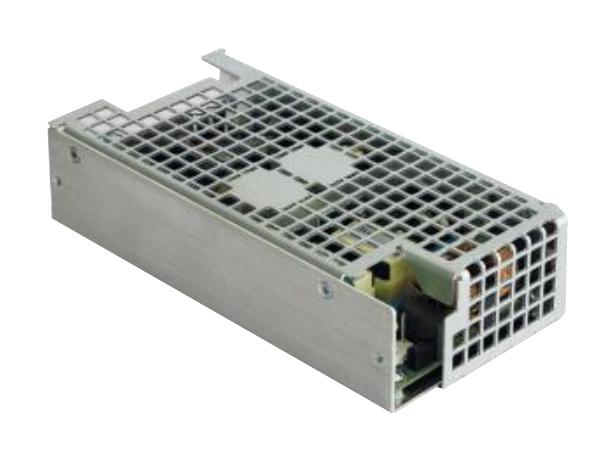

BEL POWER SOLUTIONS MBC4011048PC Medical Power Supply
The MBC401 Series offers a compact 400 W AC-DC power supply ideal for medical and diagnostic equipment. It features universal input voltage (90-264 VAC), high efficiency at 94%, and low standby power (<0.5 W). Available in various packages, it provides multiple outputs including 12, 24, 28, 36, or 48 VDC, with additional standby and auxiliary voltages. Certified for safety standards like IEC 60601-1 and CE, it includes protections such as over-temperature, over-current, and short circuit, ensuring reliable operation in critical medical environments.
BEL POWER SOLUTIONS MBC4011048PC Medical Power Supply Specifications:
- Input Voltage: 90-264 VAC, 50/60 Hz
- Output Power: 400 W rated (440 W peak)
- Efficiency: 94% typical
- Input Current: 2x Time Lag 6.3 A, 250 V
- Standby Power: <0.5 W
- Output Voltages: 12, 24, 28, 36, 48 VDC, with +5 V standby and auxiliary outputs
- Protection: Over temperature, over current, short circuit
- Dimensions: 84.4 x 170.5 x 41.0 mm (roughly 3.32 x 6.71 x 1.61 in)
- Weight: 575 g (1.43 Ib)
- Safety Certifications: IEC 60601-1, CE, CSA/UL
- Environmental: Operates from -20°C to +50°C, no derating up to 50°C
- Mechanical: Open frame, U-chassis, vented, or front fan models
Buy the Bel Series MBC401 400 W Medical Power Supply: MBC4011048PC
Order the Bel MBC4011048PC medical power supply online today to ensure dependable power for diagnostic, imaging, and therapy equipment. This 400 W unit features high efficiency, multiple output voltages, and comprehensive safety protections. Its compact design and compliance with international standards like IEC 60601-1 and CE make it ideal for medical environments requiring reliable and safe operation. Enhance your equipment's performance by purchasing this certified power supply directly from our online store for fast delivery and expert support.
Buy Bel MBC4011048PC now and experience unmatched reliability and performance in medical power systems.
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS MBC4011048PC?
You can click on the BUY or RFQ button to purchase MBC4011048PC from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MBC4011048PC?
You can download the MBC4011048PC datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of MBC4011048PC?
BEL POWER SOLUTIONS
