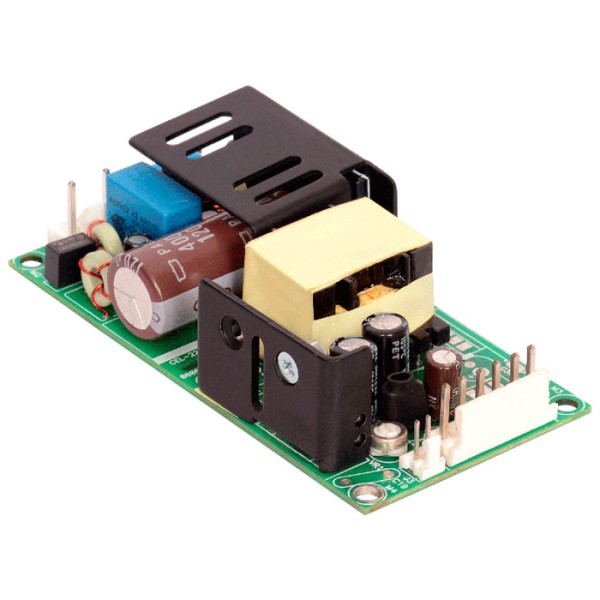

BEL POWER SOLUTIONS MBC403001G Medical Power Supply
The BEL POWER SOLUTIONS MBC40 series provides a reliable and efficient power solution for medical equipment. These open-frame power supplies offer a wide 90-264 VAC input range and are designed to meet stringent medical safety standards, including EN/IEC 60601-1. Ideal for applications such as dialysis, monitoring equipment, surgical devices, and home health devices, the MBC40 series delivers multiple output voltages and features a compact 4 x 2 x 1.2 inch form factor. With high efficiency (>85%) and low leakage current, these power supplies contribute to improved system performance and patient safety.
BEL POWER SOLUTIONS MBC403001G Medical Power Supply Specifications:
- Input Voltage: 90 - 264 VAC
- Input Frequency: 47 to 400 Hz
- Input Current: 0.85 A max. @ 120 VAC, 0.45 A max. @ 230 VAC
- No Load Power: < 0.3 W (Single output), < 0.5 W (Multi output)
- Inrush Current: 30 A max. @ 120 VAC, 60 A max. @ 230 VAC
- Leakage Current: < 140 µA @ 120 VAC, < 250 µA @ 230 VAC
- Switching Frequency: Typical 67 kHz
- Efficiency: Typical > 85%
- Hold Up Time: >10 ms
- Output Power: 40 W (Derate to 80% from 90 VAC to 80 VAC input)
- Line Regulation: ± 0.3%
- Load Regulation: ± 5%
- Transient Response: < 5 ms
- Output Voltage Adjustment: ± 10% (V1)
- Over Current Protection: Typical above rating (130%)
- Over Voltage Protection: Typical 130% (V1)
- Short Circuit Protection: Autorecovery
- Cooling: Convection
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to +70°C
- Relative Humidity: Non Condensing (95%)
- Altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- Reliability: 1.87 million hours (MTBF)
- Isolation Voltage: 4000 VAC (Input to Output, 2MOPP), 1500 VAC (Input to Ground, 1MOPP), 500 VAC (Output to Ground, 1MOPP)
- Safety Standards: EN 60601-1, IEC 60601-1 (ed.3), ANSI / AAMI ES 60601 - 1, CSA C22.2 No. 60601-1
- Weight: 150 g (0.33 lbs)
- Dimensions: 101.6 x 50.8 x 30.48 mm (4 x 2 x 1.2 inch)
Buy the MBC40-3001G BEL POWER SOLUTIONS Medical Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS MBC40-3001G Medical Power Supply securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS MBC403001G?
You can click on the BUY or RFQ button to purchase MBC403001G from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MBC403001G?
You can download the MBC403001G datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of MBC403001G?
BEL POWER SOLUTIONS
