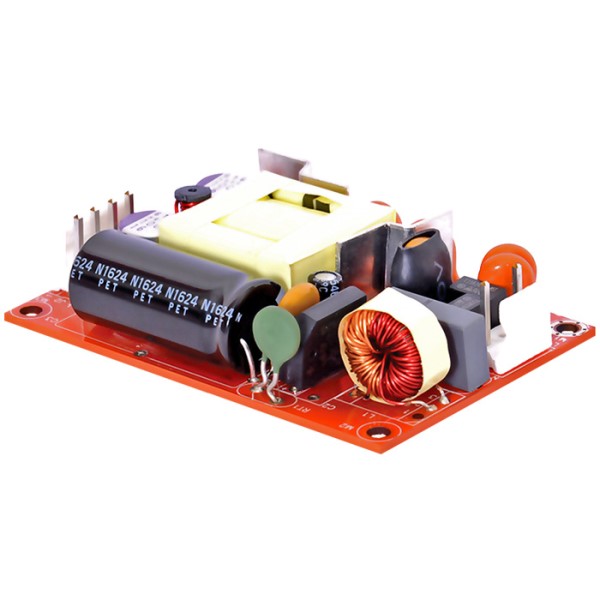

BEL POWER SOLUTIONS MBC411005P 40W Medical Power Supply
The BEL POWER SOLUTIONS MBC41 series offers a compact and efficient solution for medical and industrial applications. These power supplies provide 40W of power with a wide universal AC input range (85-264 VAC). They are designed to meet stringent medical safety standards (EN/IEC 60601-1) and feature 2 x MOPP isolation. The MBC41 series is available in PCB mount format for easy integration and offers features like dual fusing, high MTBF, and a wide operating temperature range.
BEL POWER SOLUTIONS MBC411005P 40W Medical Power Supply Specifications:
- Input Voltage: 85 - 264 VAC / 390 VDC
- Input Frequency: 47 - 63 Hz
- Input Current (115 VAC): 0.8 A max.
- Input Current (230 VAC): 0.4 A max.
- No Load Power: < 0.3 W
- Inrush Current (115 VAC): 25 A
- Inrush Current (230 VAC): 45 A
- Leakage Current: < 300 µA
- Switching Frequency: 65 kHz
- Output Power: 40 W
- Efficiency: 85% Typical
- Hold-up Time (230 VAC): 6 ms
- Line Regulation: ± 0.5%
- Load Regulation: ± 1%
- Transient Response: < 5 ms recovery time
- Rise Time: 50 ms
- Set Point Tolerance: ± 2% (± 3% for 5 V model)
- Over Current Protection: > 110%
- Over Voltage Protection: 110 to 140%
- Short Circuit Protection: Hiccup mode
- Cooling: Convection
- Operating Temperature: -40 to 70 °C
- Storage Temperature: -40 to +85°C
- Altitude (Operating): 16,000 ft
- Altitude (Non-operating): 40,000 ft
- MTBF: 2 million hours
Buy the MBC41-1005P BEL POWER SOLUTIONS 40W Medical Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS MBC41-1005P securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS MBC411005P?
You can click on the BUY or RFQ button to purchase MBC411005P from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MBC411005P?
You can download the MBC411005P datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of MBC411005P?
BEL POWER SOLUTIONS
