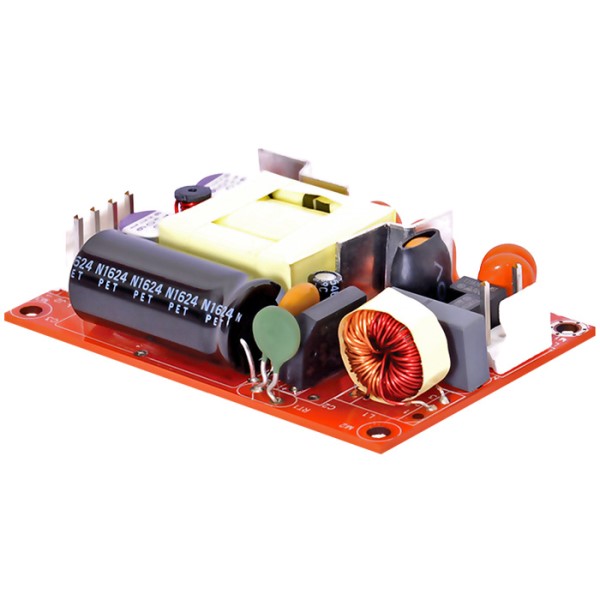

BEL POWER SOLUTIONS MBC411T48L Ultra-low Open Frame Power Supply
The BEL POWER SOLUTIONS MBC41 series of power supplies are designed for medical, telecom, datacom, and industrial equipment applications. These power supplies feature a wide universal AC input range (85-264 VAC) and offer isolated single output voltages. They are approved to the latest medical standards (EN/IEC 60601-1), providing 2 x MOPP isolation. The MBC41 series is available in a PCB mount format, facilitating simple embedded integration. They offer efficiencies of 85% typical and operate within a temperature range of -40 to 70°C.
BEL POWER SOLUTIONS MBC411T48L Ultra-low Open Frame Power Supply Specifications:
- Input Voltage: 85 - 264 VAC / 390 VDC
- Input Frequency: 47 - 63 Hz
- Input Current (115 VAC): 0.8 A max.
- Input Current (230 VAC): 0.4 A max.
- No Load Power: < 0.3 W
- Inrush Current (115 VAC): 25 A
- Inrush Current (230 VAC): 45 A
- Leakage Current: < 300 µA
- Switching Frequency: 65 kHz
- Output Power (Convection): 40 W
- Efficiency (Typical): 85%
- Hold-up Time (230 VAC): 6 ms
- Line Regulation: ± 0.5%
- Load Regulation: ± 1%
- Transient Response: < 5 ms recovery time
- Rise Time (Typical): 50 ms
- Set Point Tolerance: ± 2% (± 3% for 5 V model)
- Over Current Protection: > 110%
- Over Voltage Protection: 110 to 140%
- Short Circuit Protection: Hiccup mode
- Cooling: Convection
- Operating Temperature: -40 to 70 °C
- Storage Temperature: -40 to +85 °C
- Relative Humidity: 5% to 95% (Non-condensing)
- Altitude (Operating): 16,000 ft
- Altitude (Non-operating): 40,000 ft
- MTBF (Telcordia): 2 million hours
- Isolation Voltage (Input to Output): 4000 VAC
- Isolation Voltage (Input to GND): 1500 VAC
- Isolation Voltage (Output to GND): 1500 VAC
- Agency Approvals: Nemko, UL, C-UL
- CE Mark: Complies with LVD Directive
