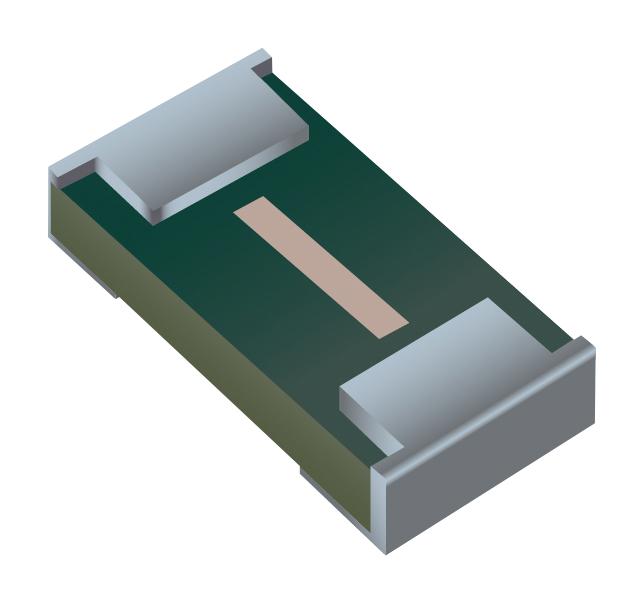

Bourns SF0402FP125F2 Surface Mount Fuse
The SF-0402FP125F series are fast-acting surface mount fuses designed for overcurrent protection in compact electronic devices. Rated at 1.25A, these 0402 size fuses feature a precise thin film chip design, UL 248-14 listing, and RoHS compliance. Suitable for portable memory, LCD monitors, power tools, and other consumer electronics, they offer reliable circuit protection with a quick melt within 200% rated current, ensuring safety and durability in automated assembly and miniaturized circuits.
Bourns SF0402FP125F2 Surface Mount Fuse Specifications:
- Size: 0402 (EIA 1005)
- Rated Current: 1.25A
- Resistance: 0.054 Ω at 25°C
- Fusing Time: Opens within seconds at 200 % rated current
- Peak Voltage Rating: 100 V
- Construction: Thin film chip design, epoxy encapsulated
- Temperature Range: -55°C to +90°C operating, +5°C to +35°C storage
- Humidity: 40% to 75%
- Packaging: Tape & Reel, 20,000 pieces per reel
- RoHS compliant, halogen-free
- Solder reflow profile: Max 260°C peak temperature, preheat 150-200°C
- UL Listed: File No. E198545
Buy the Bourns Series SF-0402FP: Fast Acting Fuse 1.25A
Purchase the Bourns Series SF-0402FP 125F fast-acting fuse online now to enhance your electronic circuit safety. With its compact 0402 size, UL listing, and RoHS compliance, this 1.25A fuse provides high reliability and quick response for your portable memory, LCD monitors, power tools, and consumer electronics. Designed for automated assembly, it features a thin film chip structure for consistent performance under various environmental conditions. Secure your device’s protection by ordering this dependable surface-mount fuse today and experience seamless integration and safety assurance.
Order your Bourns Series SF-0402FP 125F fast-acting surface mount fuse today and ensure reliable overcurrent protection for your compact electronic designs.
Frequently Asked Questions
Where can I buy Bourns SF0402FP125F2?
You can click on the BUY or RFQ button to purchase SF0402FP125F2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF0402FP125F2?
You can download the SF0402FP125F2 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF0402FP125F2?
Bourns
