Bourns SF0402FP500F2 Surface Mount Fast Fuse
The SinglFuse SF-0402FPxxxF Series comprises fast-acting, surface-mount precision fuses designed for overcurrent protection in compact electronic devices. These UL 248-14 listed fuses feature a 1005 (EIA 0402) miniature footprint with a thin film chip design, making them ideal for automated assembly. They operate within a temperature range of -55°C to +125°C, with high reliability against thermal shock, moisture resistance, and mechanical vibration, ensuring dependable performance in various electronic and industrial applications such as cell phones, LCD monitors, battery packs, and power tools.
Bourns SF0402FP500F2 Surface Mount Fast Fuse Specifications:
- Footprint: 1005 (EIA 0402)
- Package: Surface mount, tape & reel, 20,000 pcs per reel
- Rated Current: 0.20A to 5.00A
- Resistance: 0.0017Ω to 0.550Ω (measured at <10% rated current at 25°C)
- Voltage Rating: DC 35V
- Temperature Range: -55°C to +125°C operating, 5°C to 35°C storage
- Humidity: 40% to 75%
- Shelf Life: 2 years
- Moisture Sensitivity Level: 1
- ESD Classification: Class 6 (HBM)
- Construction: Thin film chip fuse with epoxy encapsulation
- Standards: UL 248-14 listed, RoHS compliant, halogen free
- Reflow Profile: Pb-Free, preheat 150°C-200°C, max 200°C, 60-120 sec, peak temperature 217°C, ramp rate 3°C/sec
- Mechanical vibration and shock tested, moisture resistance, salt spray, and thermal shock rated
- Dimensions: Length approximately 0.08 inches (2.0 mm), width 0.04 inches (1.0 mm), height around 0.03 inches (0.7 mm)

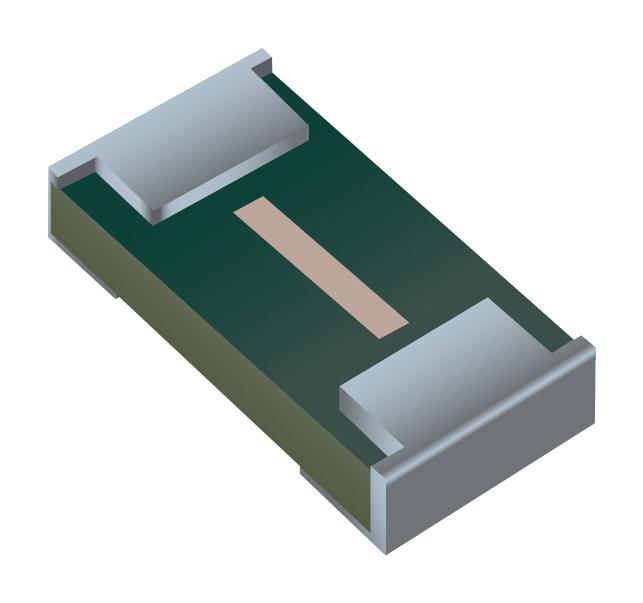

Buy the Bourns Series SF-0402FP Fuses: SF0402FP500F
Purchase the Bourns Series SF-0402FP fast-acting surface-mount fuse online now and safeguard your electronic appliances and industrial equipment with reliable overcurrent protection. These UL listed, RoHS compliant thin film chips are designed for high reliability and automatic assembly, suitable for cell phones, LCD monitors, batteries, and power tools. With a compact 1005 footprint and robust construction, these fuses provide excellent thermal and mechanical resilience, ensuring consistent performance across a wide temperature range. Buy online today and enhance your device safety with high-quality, precision protection components.
Order your Bourns Series SF-0402FP 5.00A fast-acting surface-mount fuse today and ensure reliable overcurrent protection in your electronic designs.
Frequently Asked Questions
Where can I buy Bourns SF0402FP500F2?
You can click on the BUY or RFQ button to purchase SF0402FP500F2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF0402FP500F2?
You can download the SF0402FP500F2 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF0402FP500F2?
Bourns
