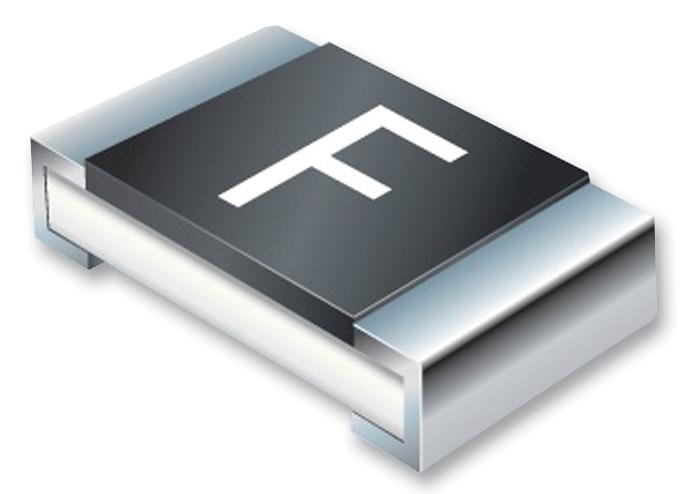

Bourns SF0603SP0632 Surface Mount Chip Fuse
The SinglFuse SF-0603SP Series offers reliable overcurrent protection with a miniature 1608 (EIA 0603) surface-mount design, UL listed, and RoHS compliant. These time lag thin film chip fuses are ideal for portable memory, cell phones, LCD monitors, battery packs, disk drives, digital cameras, and industrial controllers. They feature fast fusing times within 1 to 120 seconds at rated voltages up to 50V, with resistance values and thermal performance tested to ensure durability. Suitable for automated assembly with tape-and-reel packaging, ensuring dependable protection for various electronic applications.
Bourns SF0603SP0632 Surface Mount Chip Fuse Specifications:
- Dimensions: 1608 (EIA 0603) size
- Rated Voltage: DC 50V
- Fusing Time: within 1~120 sec at rated current
- Breaking Capacity: 50A at DC 50V
- Resistance Tolerance: +25 %
- Resistance Value Measured with less than 10 % of rated current
- UL Listed: File Number 198545
- RoHS Compliant and Halogen Free
- Operating Temperature: -20 °C to +105 °C
- Temperature Rise: <75°C at rated current
- Soldering Conditions: peak temperature 250°C ±5°C, pre-heating 150-180°C for 90s
- Reel Packaging: 5,000 pieces per reel, tape dimensions per EIA 481-2
Buy the Bourns SF-0603SP U–2013 Reliable Overcurrent Protection Fuse for Industrial Applications
Purchase the Bourns SF-0603SP Series surface mount chip fuse online to ensure reliable overcurrent protection for your electronic devices. These miniature fuses are UL listed, RoHS compliant, and designed for automated assembly with tape-and-reel packaging. Ideal for portable electronics, cell phones, LCD monitors, and industrial controllers, providing fast fusing times within 1 to 120 seconds at up to 50V DC. Enhance your device safety with durable, high-performance fuses that meet international standards and quality benchmarks.
Get Bourns SF-0603SP today—built for precision and long-lasting durability in overcurrent protection solutions.
