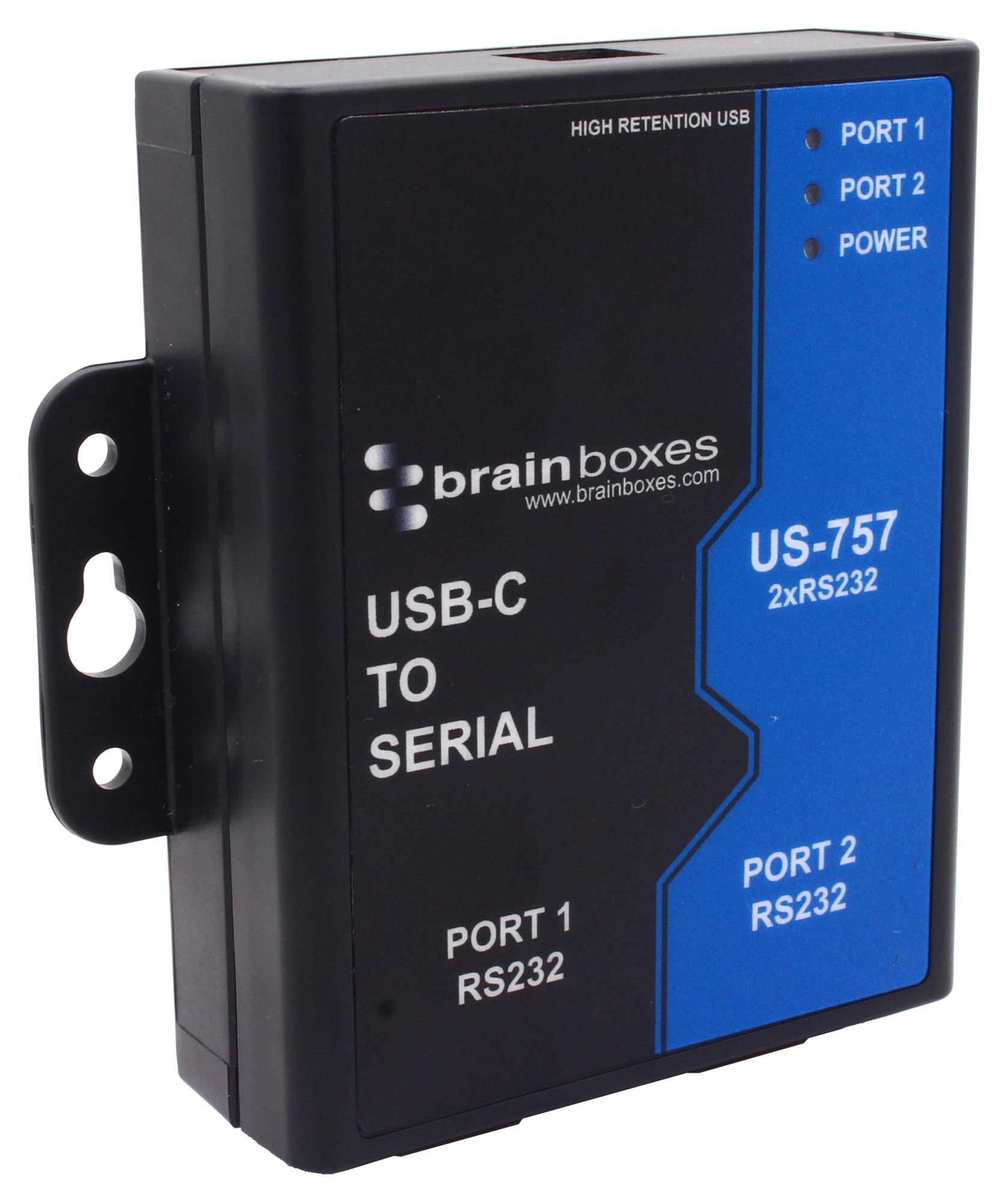

BRAINBOXES US757 Serial Server Hub
The USB-C to 2 Port RS232 Serial Server Hub offers a reliable, high-retention USB connection with an industrial IP-30 rated non-conducting case, ideal for connecting multiple serial devices. Featuring integral wall mounts and optional DIN rail kits, it supports plug-and-play operation with drivers for all popular operating systems like Windows 8 and Windows 10. Operating within -0°C to +60°C, it offers configurable baud rates up to 921,600, robust port settings, and status LED indicators. Its compact design makes it suitable for industrial, laboratory, POS, and oil rig applications, ensuring secure and stable serial communication.
BRAINBOXES US757 Serial Server Hub Specifications:
- Connector: USB-C to 2 RS232 ports (9 Pin Male)
- Operating Temperature: -0°C to +60°C/32°F to +140°F
- Storage Temperature: -0°C to +60°C/32°F to +140°F
- Cable: USB-A to B 1 metre (3ft), USB-C to host device
- Baud Rate: Up to 921,600 baud, customizable
- Data Bits: 7 or 8, Parity: Odd, Even, None, Mark, Space
- Stop Bits: 1 or 2
- Flow Control: RTS/CTS, DSR/DTR, XON/XOFF
- FIFO Size: 384 RX, 128 TX
- Led Indicators: Power, Data TX, Data RX, Port status
- Power Supply: Via USB 5V, 100mA at 3.3V
- Dimensions: 102x100x27 mm
- Weight: 0.109 kg
- Environmental: IP-30 rated, non-conducting case, supports industrial environments
- Certifications: CE, UKCA, RoHS, WEEE
- Standards: EIA RS232, complies with industry standards
Buy the Brainboxes US757 – Reliable USB-C to 2 Port RS232 Serial for Industrial Applications
Enhance your industrial communication infrastructure with the Brainboxes US757 serial server hub, offering dual RS232 ports, high retention USB-C connection, and robust IP-30 rated case. Support for a wide range of baud rates up to 921,600 makes it suitable for demanding environments like manufacturing, labs, and oil rigs. Easy to install with integral wall mounts and optional DIN rail options. Compatible with all major Windows OS, it ensures secure, stable serial device integration for reliable operation. Streamline your operations today by purchasing online.
Buy Brainboxes US757 now and experience unmatched reliability and performance in industrial serial communication solutions.
Frequently Asked Questions
Where can I buy BRAINBOXES US757?
You can click on the BUY or RFQ button to purchase US757 from an authorized BRAINBOXES distributor.
How do I troubleshoot issues or seek technical support for part US757?
You can download the US757 datasheet or visit the BRAINBOXES website for support.
Who is the manufacturer of US757?
BRAINBOXES
