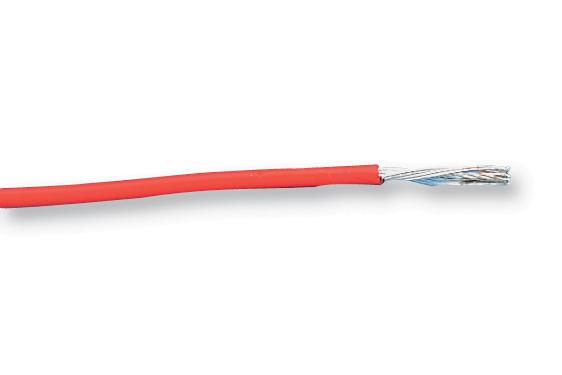

BRAND REX SPC00447A001100M PTFE Insulated Conductors
PTFE insulated conductors are highly resistant to oils, fuels, and lubricants, making them suitable for electronic equipment and instrumentation environments demanding high thermal, chemical, electrical, or mechanical protection. Available in solid and bi-color configurations, these conductors feature temperature ratings up to 260°C for Type NA, with voltage ratings of 300Vrms or 600Vrms depending on the type. They are flexible, non-flammable, and can be surface-treated for termination, ensuring durability and reliability in demanding applications.
BRAND REX SPC00447A001100M PTFE Insulated Conductors Specifications:
- Insulation Material: PTFE
- Temperature Rating: Type A 190°C, Type NA 260°C, Type B 190°C, Type NB 260°C, Type C 190°C, Type NC 260°C
- Voltage Rating: 300Vrms (Type A, NA, C), 600Vrms (Type B, NB, NC), 1000Vrms (Type C, NC)
- Conductor Material: Silver plated (Type A, B, C), Nickel plated (NA, NB, NC) or Annealed Copper
- Conductor Sizes: Range from 7/0.08 mm to 37/0.40 mm; AWG from 32 to 10
- Diameter: 0.04 mm to 4.65 mm depending on wire gauge
- Nominal Resistance: Varies with gauge, e.g., 377.0–387.0 Q/km for 30 AWG, 0.250 mm diameter
- Color Coding: Standard colors include Black, White, Blue, Green/Yellow, Orange, Pink, Violet, and Bi-Colors
- RoHS Compliant: Yes
- Surface Treatment: Optional surface etching for termination
- Flexibility: High flexibility suitable for internal wiring
- Certification: Compliant with relevant standards for electrical safety and high-temperature environments
Buy the Buy Brand-Rex PTFE Insulated Conductors Part Number SPC00447A001100M Online
Order Brand-Rex PTFE Insulated Conductors SPC00447A001100M online today to ensure high-performance, chemical and heat resistance, and flexible wiring solutions for electronic and instrumentation environments. Our conductors offer exceptional durability, high-temperature ratings up to 260°C, and are suitable for demanding industrial applications. These conductors are available in various sizes and color-coded options, with optional surface treatments for secure terminations. Purchase now to benefit from quick shipping, competitive prices, and trusted quality backed by industry standards.
Get Brand-Rex SPC00447A001100M today—built for high temperature, chemical resistance, and long-lasting durability in electronic wiring applications.
