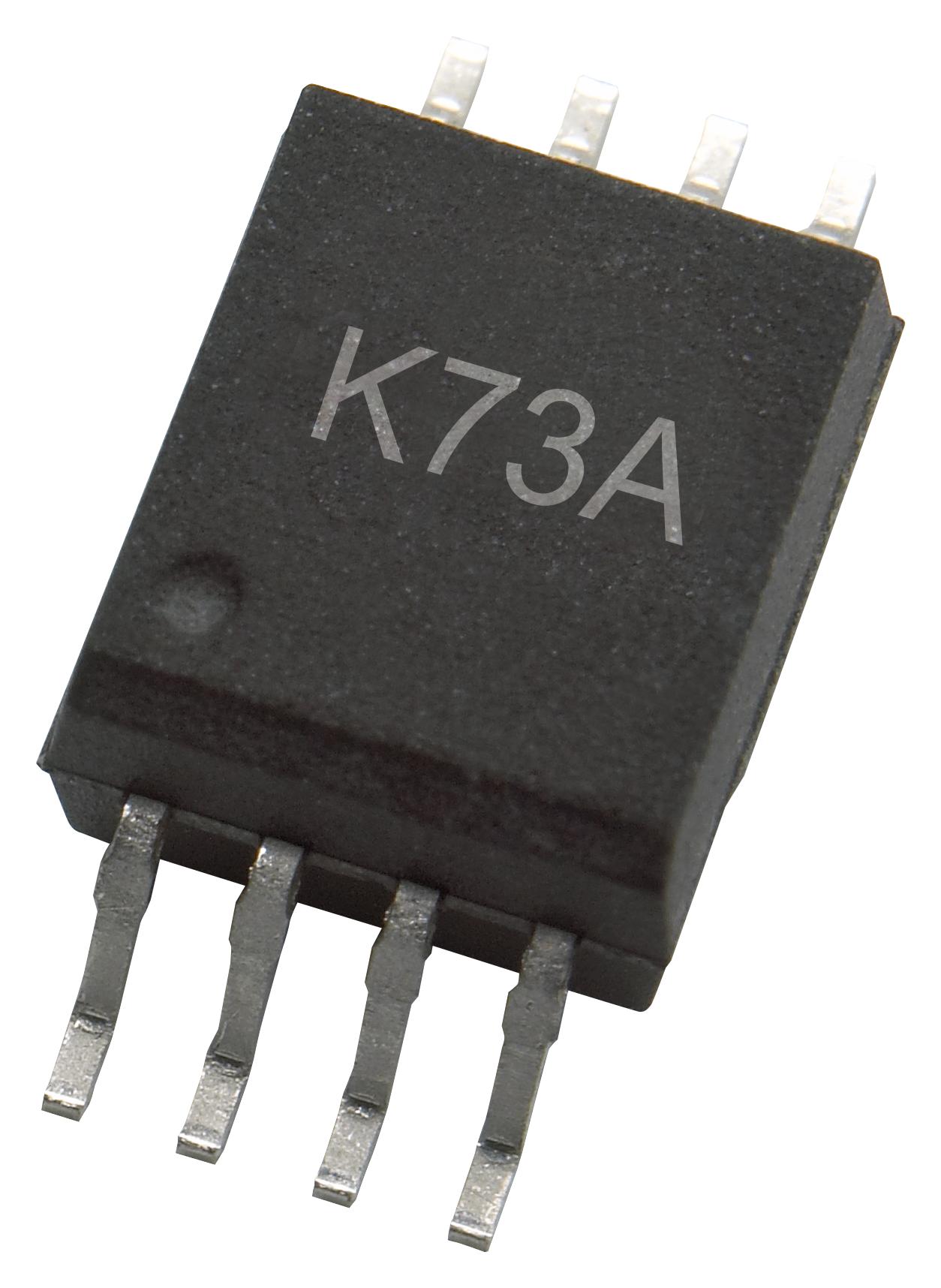

BROADCOM ACPLK73A500E High Gain Optocoupler
These high gain optocouplers use an LED and integrated photodetector to ensure high current transfer ratios and low input current requirements. Suitable for LVTTL/LVCMOS low-power applications, they feature a stretched SOIC-8 surface-mount package without through holes, making them easy to install on modern PCBs. They support dual 3.3V/5V power supplies, guarantee performance over -40°C to +105°C, and have a high output current of 60 mA. Safety approvals include UL, CSA, and IEC standards, making them ideal for ground isolation and low-power control applications.
BROADCOM ACPLK73A500E High Gain Optocoupler Specifications:
- Package: Stretched SO8 surface-mount
- Supply Voltage: 3.3V/5V dual supply
- Input Current: 0.04 mA (typical)
- High current transfer ratio: up to 25,000%
- Output Current: 60 mA
- Isolation Voltage: 5000 V (UL 1577 recognized)
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C to +125°C
- Power Dissipation: Output 100 mW, Input 35 mW
- Build: RoHS compliant, Tape & Reel packaging available
- Safety Approvals: UL, CSA, IEC 60747-5-5
- Solder Reflow Profile: Standard JEDEC profile required
- Lead Soldering Cycle: Max 260°C for 10 seconds
Buy the Broadcom ACPL-K70A – Reliable High Gain Optocoupler for Industrial Applications
Order the Broadcom ACPL-K70A optocoupler online today and enjoy rapid delivery of a high-performance, low input current device. Designed with a stretched SOIC-8 package, it offers excellent electrical isolation, high output current, and compatibility with 3.3V and 5V systems. Fully compliant with safety standards like UL, CSA, and IEC, this device ensures reliable operation over a wide temperature range from -40°C to +105°C. Perfect for industrial control, ground isolation, and low-power applications, purchase now for seamless integration into your system.
Buy Broadcom ACPL-K70A high gain optocoupler now and experience unmatched reliability and performance in low-power industrial and control systems.
Frequently Asked Questions
Where can I buy BROADCOM ACPLK73A500E?
You can click on the BUY or RFQ button to purchase ACPLK73A500E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLK73A500E?
You can download the ACPLK73A500E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLK73A500E?
BROADCOM
