BROADCOM APDS9700020 Optical Proximity Sensor IC
The APDS-9700 is a compact signal conditioning IC designed for optical proximity sensors, providing enhanced performance with sunlight immunity, LED driver, and protection features. Ideal for portable devices, it offers low power consumption, configurable LED current, and operational flexibility with analog and digital outputs. The IC supports detection distances up to 200mm with external options and is housed in an 8-pin QFN package measuring 2mm x 2mm. Its versatile features make it suitable for mobile, industrial, and automation applications requiring reliable proximity detection in sunlight or artificial light.
BROADCOM APDS9700020 Optical Proximity Sensor IC Specifications:
- Supply Voltage: 2.4V to 3.6V
- Package: 8-pin QFN, 2mm x 2mm
- Operating Temperature: -40°C to 105°C
- Reflow Soldering Temperature: 260°C
- Output Types: Analog and Digital
- Digital Output: Open drain, pull-up resistor recommended 10kΩ
- Analog Output: Connect to integration circuits
- LED Driver: Configurable pulse width, burst rate, duty cycle
- LED Current: Up to 120mA maximum pulse width 120μs
- Photodiode Input: Current up to 3pA, gain 20×
- Sunlight Cancellation: Up to 100klux
- Hysteresis Voltage: 40mV
- Isolation & Protection: LED stuck high protection, UV-ROHS compliant
- Detection Distance: Up to 200mm with external pair
- Dimensions: 2mm x 2mm x 0.55mm

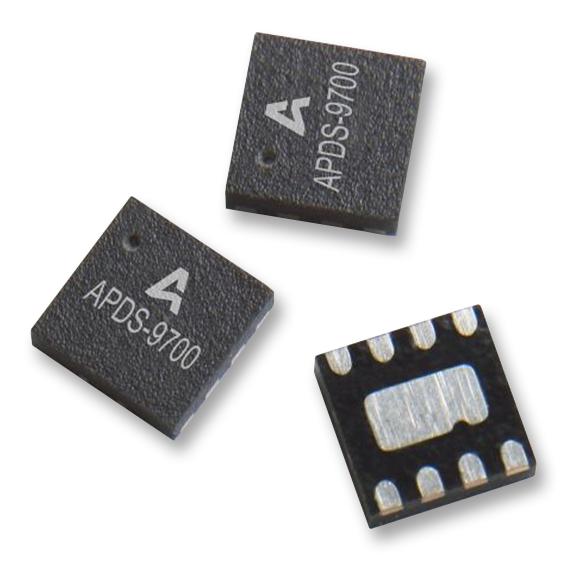

Buy the Buy Avago APDS-9700 Signal Conditioning IC Part Number APDS9700020 Online
Purchase the Avago APDS-9700 optical proximity sensor IC online for high-performance, sunlight immunity, and low power operation. This compact, 8-pin QFN device offers configurable LED current, analog and digital outputs, and protection features suitable for portable, industrial, and automation applications. With detection capabilities reaching 200mm, it is ideal for contactless switches, handheld devices, and automation systems. Order now to benefit from fast shipping, reliable performance, and integrated features that simplify design and enhance application robustness.
Get Avago APDS-9700 today—designed for precision proximity detection, low power operation, and reliable performance in sunlight conditions.
