BROADCOM HCPL0710000E High-Speed CMOS Optocoupler
The HCPL-0710-000E is a high-speed optocoupler with a 40ns propagation delay, utilizing advanced CMOS IC technology for excellent performance and low power consumption. It features CMOS compatibility requiring only two bypass capacitors, with a CMOS logic input controlling the LED driver IC, which supplies current to the internal LED. The detector IC includes an integrated photodiode, a high-speed trans-impedance amplifier, and a voltage comparator with an output driver. Key specifications include 5V CMOS compatibility, a high-speed data rate of 12 Mbaud, and a minimum common-mode rejection of 10 kV/μs, operating within a temperature range of -40°C to +100°C. Proper static precautions are recommended during handling to prevent electrostatic damage. Applications span multistation serial links, industrial communication, and microprocessor system interfaces, making it suitable for digital isolation tasks in complex networks.
BROADCOM HCPL0710000E High-Speed CMOS Optocoupler Specifications:
- Propagation delay: 40 ns
- CMOS compatibility with 5 V logic levels
- Data rate: 12 MBd
- Pulse width distortion: 8 ns
- Common mode rejection: 10 kV/μs minimum
- Temperature range: -40°C to +100°C
- Input voltage range: -0.5 V to 6 V
- Maximum input current: 10 mA
- Output voltage: 0-5 V CMOS compatible
- Input and output capacitance: approximately 3 pF
- Insulation resistance: >10^12 Ω at 500 V
- Isolation voltage: 3750 Vrms for 1 minute

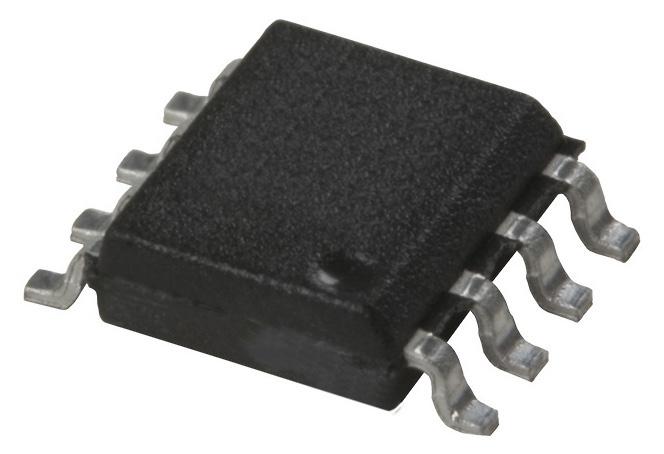

Buy the Avago Series HCPL-0710 Optocoupler: HCPL0710000E
