BROADCOM HCPL0723000E High Speed CMOS Optocoupler
The HCPL-0723-000E high-speed optocoupler employs advanced CMOS IC technology, supporting at least 50 Mbaud data rate and 2 ns pulse width distortion. It integrates a CMOS LED driver, a high-speed LED, and a CMOS detector with photodiode, transimpedance amplifier, and voltage comparator. Suitable for digital communication, networking, and peripheral interfaces, it operates from -40°C to 85°C, offers excellent common mode rejection of 10kV/µs, and complies with safety standards. Designed for 5V CMOS systems, it ensures reliable isolation and high-speed data transmission with minimal distortion, ideal for demanding industrial and computing applications. Lead times may vary due to market demand.
BROADCOM HCPL0723000E High Speed CMOS Optocoupler Specifications:
- Supply Voltage: 5 V CMOS compatible
- Propagation Delay: 16-22 ns
- Pulse Width Distortion: 1-2 ns
- Maximum Data Rate: 50 MBd
- Operating Temperature Range: -40°C to 85°C
- Common Mode Rejection: 10 kV/µs minimum
- Isolation Voltage: 3750 V rms
- Input Current: 84-10 mA (logic low), 0.6-3 mA (logic high)
- Output Voltage: 0-5 V
- Output Current: Up to 10 mA
- Package Types: 8-pin DIP and SO-8
- UL Recognized: Yes, for 3750 V rms
- RoHS Compliant: Yes
- Lead Solder Temperature: 260°C for 10 sec

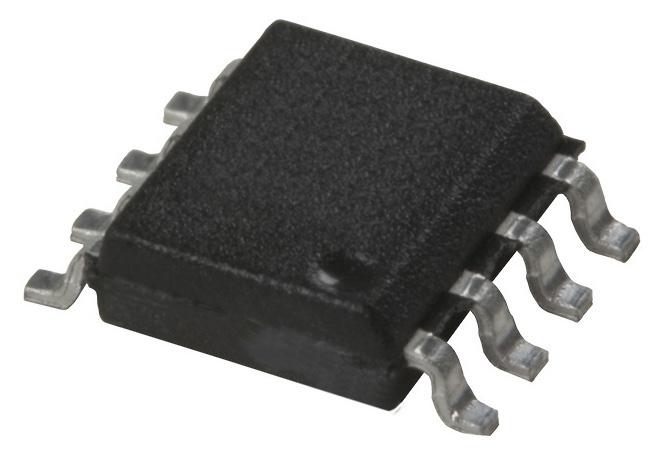

Buy the Buy Avago HCPL-7723-000E High Speed CMOS Optocoupler Part Number HCPL0723000E Online
Order the Avago HCPL-7723-000E online today to experience superior high-speed digital isolation essential for industrial automation, networking, and computing applications. This CMOS optocoupler supports data rates of 50 MBd with only 2 ns pulse width distortion, ensuring fast and reliable data transfer. Its advanced CMOS IC technology provides excellent noise immunity, high common mode rejection, and robust safety features, including UL recognition and RoHS compliance. Designed for 5V systems, it operates reliably from -40°C to 85°C, making it ideal for demanding environments. Secure your supply now for quick delivery and optimal performance.
Get Avago HCPL-7723-000E today—built for high-speed data transmission with minimal pulse distortion in industrial and communication systems.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0723000E?
You can click on the BUY or RFQ button to purchase HCPL0723000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0723000E?
You can download the HCPL0723000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0723000E?
BROADCOM
