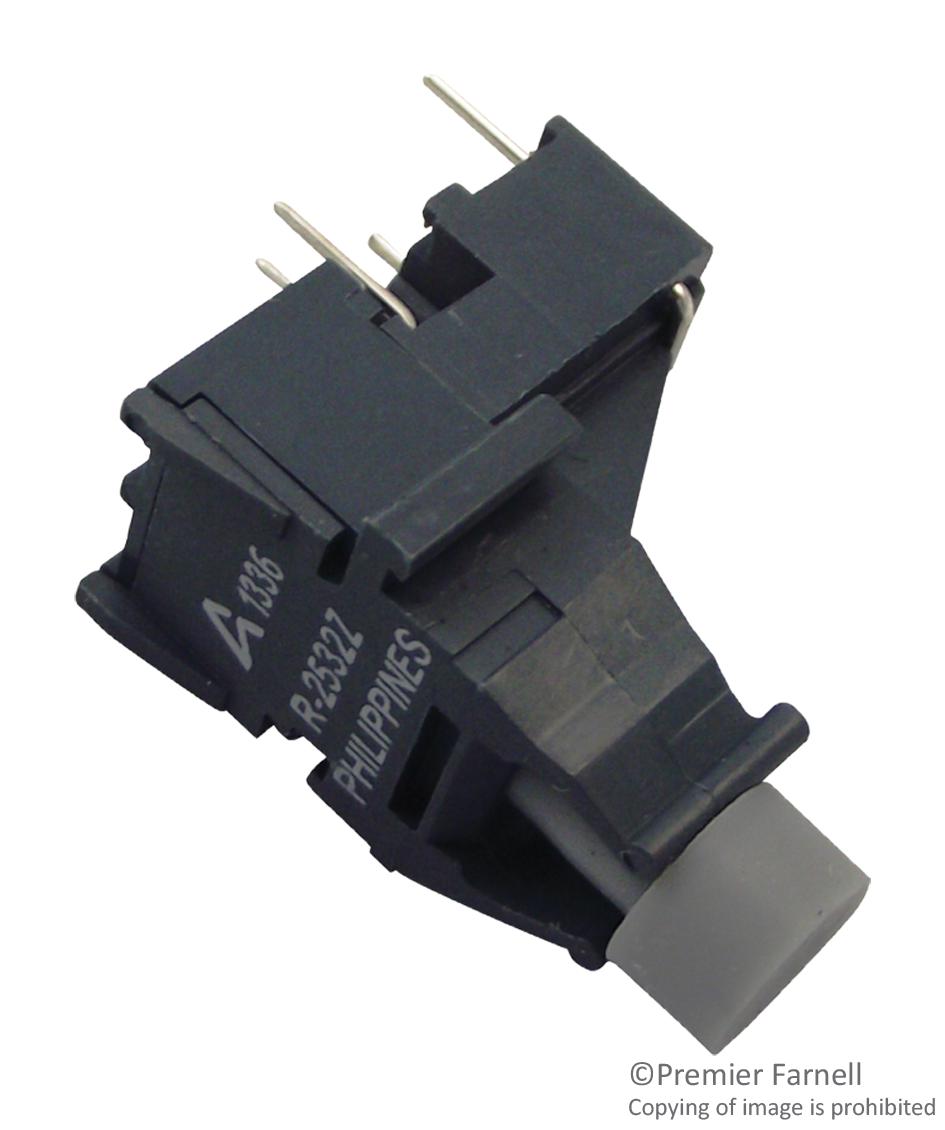

BROADCOM HFBR2532Z High-Speed Digital Link Receiver
The HFBR-2532Z is a high-performance, high-speed digital link receiver designed for data transmission applications requiring voltage isolation, EMI/RFI immunity, or data security. It features a monolithic, DC-coupled digital IC receiver with an open-collector Schottky output transistor and an integrated shield that provides additional noise immunity. The device supports data rates from DC to 5 MBd, with extended distances up to 120 meters at 40 kBd. It consumes a peak supply current of approximately 6mA, suitable for horizontal and vertical mounting, with internal pull-up resistor and interlocking feature for secure connections. Compatible with simplex, duplex, and latching connectors, it pairs with transmitters that have a visible 660nm red LED for alignment, making it ideal for automotive, fiber optics, sensing, industrial automation, and process control applications. High demand may affect lead times, and discounts are not offered.
BROADCOM HFBR2532Z High-Speed Digital Link Receiver Specifications:
- Data Rate: DC to 5 MBd
- Maximum Link Distance: up to 120 meters at 40 kBd
- Supply Current: approximately 6mA peak
- Mounting: Horizontal and vertical options
- Optical Component: Incorporates a visible 660 nm red LED for alignment
- Electrical Interface: Compatible with standard TTL circuitry
- Noise Immunity: Built-in shield, internal pull-up resistor
- Connector Compatibility: Simplex, duplex, latching connectors
- Voltage Insulation: Suitable for applications requiring voltage isolation
- Operation Temperature Range: typical for industrial environments
Buy the Buy Avago Technologies HFBR2532Z High-Speed Digital Link Receiver Part Number HFBR2532Z Online
Order the Avago HFBR-2532Z online today and ensure reliable high-speed data communication with excellent voltage isolation, EMI/RFI immunity, and extended range up to 120 meters at 40kBd. Designed for easy integration with simplex, duplex, and latching connectors, this receiver supports a wide array of industrial, automotive, sensing, and fiber optic applications. Its low peak current of around 6mA and robust noise immunity features make it a perfect choice for precision data systems. Enjoy quick delivery and seamless online purchasing with our professional service and technical support.
Get Avago Technologies HFBR2532Z today—optimized for high-speed data transmission, low power consumption, and enhanced noise immunity.
Frequently Asked Questions
Where can I buy BROADCOM HFBR2532Z?
You can click on the BUY or RFQ button to purchase HFBR2532Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR2532Z?
You can download the HFBR2532Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR2532Z?
BROADCOM
