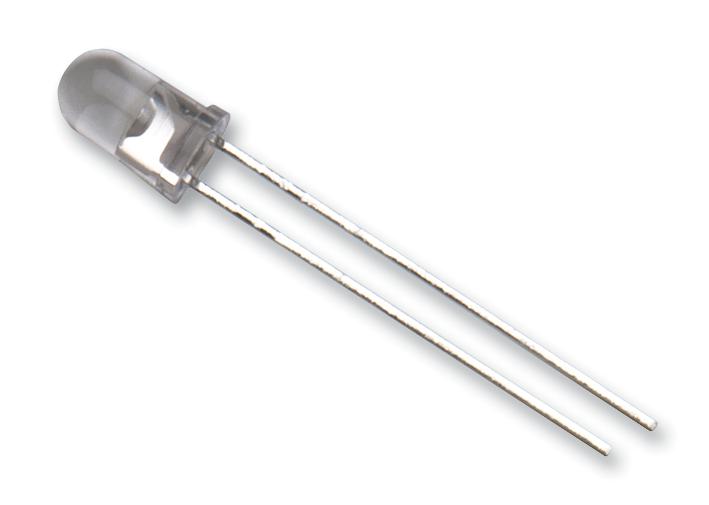

BROADCOM HLMPEL3GVW0DD High Brightness LED
These high-brightness AllnGaP LEDs deliver superior outdoor visibility with stable light output, high moisture resistance, and UV-inhibited epoxy for outdoor signals and signage. Available in red and amber with various viewing angles of 15°, 23°, and 30°, they suit traffic signals, pedestrian crossings, WZ warning lights, and outdoor advertising. Designed for reliable PCB insertion, they operate at temperatures up to +130°C, supporting high-temperature outdoor applications with a focus on durability, brightness, and precise radiation patterns for optimal signal clarity and performance.
BROADCOM HLMPEL3GVW0DD High Brightness LED Specifications:
- Wavelength: Red 626 nm, Amber 590 nm
- Viewing angle options: 15°, 23°, 30°
- Maximum LED junction temperature: +130°C
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Peak forward current: 100 mA
- Forward voltage: 2.1 V at 20 mA
- Power dissipation: 120 mW
- Luminous efficacy: Red 190 lm/W, Amber 490 lm/W
- Lead material: Tin-plated, mild steel
- Package options: Standoff and non-standoff
- Maximum junction temperature: +130°C
- Epoxy: UV-inhibitor, high-temperature resistant
- Dimensions: 5 mm diameter, length varies with package type, tolerance ±0.2 mm
- Designed for outdoor applications with high moisture resistance
Buy the Avago HLMP-EL3GVW0DD – Reliable Signal LED for Industrial Applications
Purchase the Avago HLMP-EL3GVW0DD high-brightness outdoor LED online today. This reliable LED provides excellent visibility in sunlight with high moisture and temperature resistance. Perfect for traffic signals, pedestrian crossings, and outdoor advertising, its precision radiation pattern ensures outstanding signaling clarity. Designed for PCB insertion, it supports high-temperature operation up to +130°C. With UV-inhibited epoxy, it withstands prolonged exposure to sunlight. Get this durable, high-efficiency LED now and enhance your outdoor signaling projects with confidence and superior performance.
Buy Avago HLMP-EL3GVW0DD high-brightness outdoor LED now and experience unmatched durability and visibility for industrial and traffic signaling.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEL3GVW0DD?
You can click on the BUY or RFQ button to purchase HLMPEL3GVW0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEL3GVW0DD?
You can download the HLMPEL3GVW0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEL3GVW0DD?
BROADCOM
