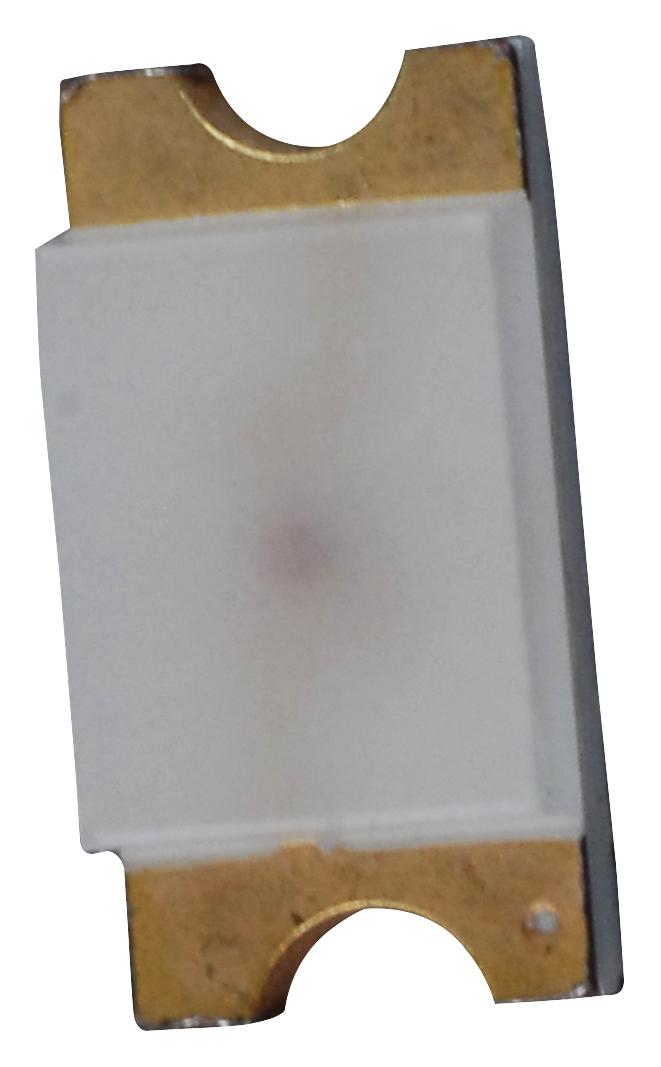

BROADCOM HSMGC150 Surface Mount Chip LED
Surface mount chip LEDs designed with industry-standard footprints, available in multiple sizes, shapes, and colors for backlighting, indicator, and illumination applications. They feature diffused optics, compatibility with IR reflow soldering, and are suitable for LCD backlighting, keypad, button, and front panel illumination. Variants include right angle, reverse mount, and ultra-low profile packages with wide viewing angles. Operating temperature is -40°C to +85°C, with specific electrical characteristics and robust construction ideal for compact, space-sensitive electronic designs.
BROADCOM HSMGC150 Surface Mount Chip LED Specifications:
- Size and footprint vary: 3.2 x 1.6 mm, 2.0 x 1.25 mm, 1.6 x 0.8 mm, and smaller options
- Profiles: 0.4 mm to 1.5 mm depending on model
- Operating temperature: -40°C to +85°C
- Backward compatible with IR reflow soldering
- Forward current: 20-25 mA depending on series
- Power dissipation: 52-65 mW
- Reverse voltage: 5 V
- Junction temperature: 95°C
- Optical wavelength: 570 to 660 nm (green, yellow, orange, red), 630 nm (HER)
- Luminous intensity: 15 to 45 mcd (typical)
- Viewing angle: approximately 130°
- Available in diffused optics
- Packaging: Tape and reel, compatible with pick-and-place processes
- Surface-mount technology: Yes
- Application: LCD backlighting, front panel indicator, keypad illumination, symbol lighting
Buy the Avago Technologies HSMG-C150 – Reliable Surface Mount Chip LEDs for Industrial Applications
Enhance your electronic designs with the high-quality surface mount chip LEDs from Avago Technologies. Available in various sizes, colors, and profiles, these LEDs are engineered for durability and excellent light quality, making them ideal for backlighting, indicators, and illumination in space-constrained applications. They support IR reflow soldering, operate from -40°C to +85°C, and feature diffused optics for wide viewing angles. Order online now to ensure reliable performance for your industrial, electronic, or equipment projects with quick delivery and expert support.
Order your Avago Technologies HSMG Series C150 surface mount chip LED today and give your electronic projects the dependable backlighting and indicator performance they need.
Frequently Asked Questions
Where can I buy BROADCOM HSMGC150?
You can click on the BUY or RFQ button to purchase HSMGC150 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMGC150?
You can download the HSMGC150 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMGC150?
BROADCOM
