BUD INDUSTRIES DPH28708 Polycarbonate Enclosure

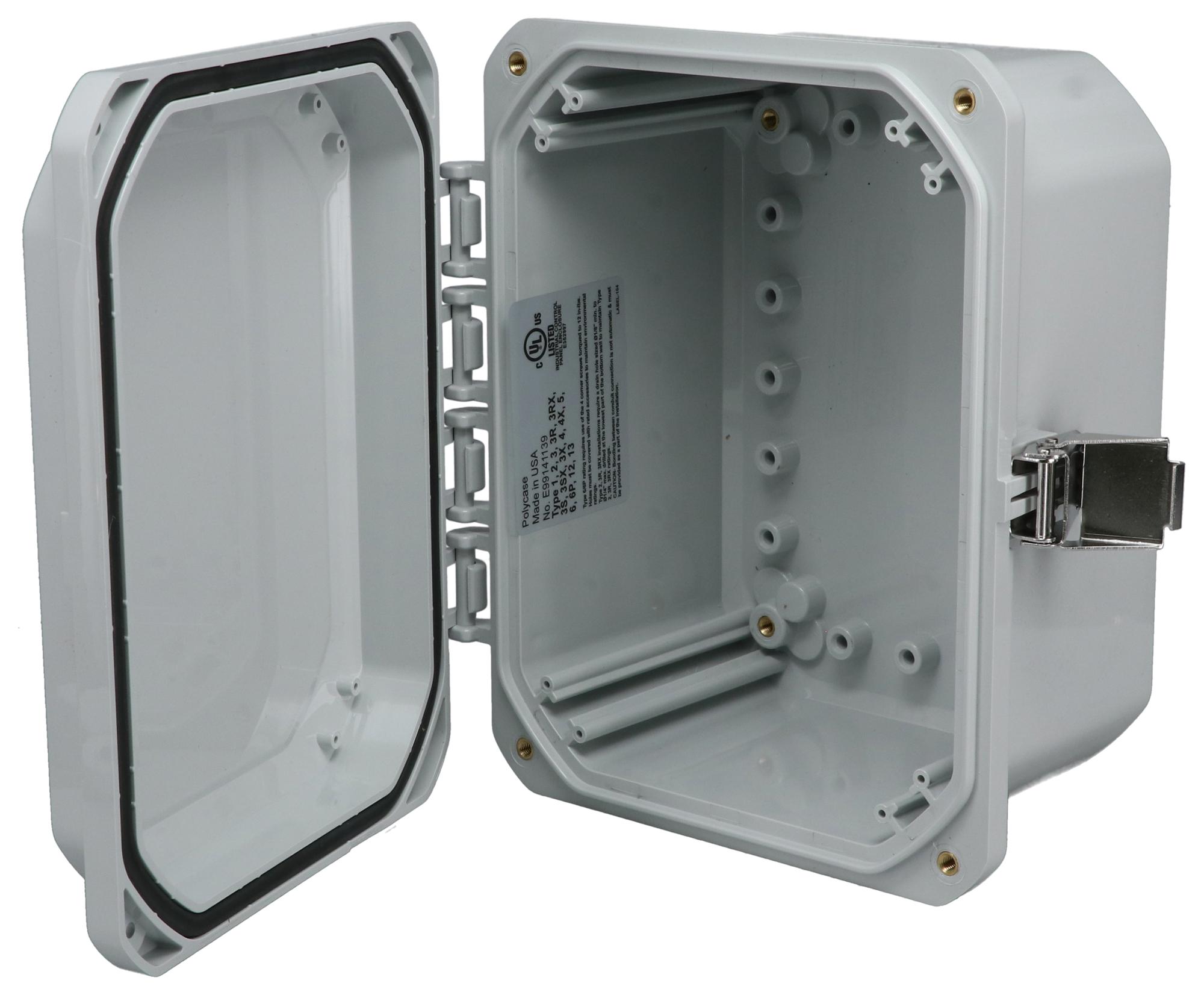

The BUD INDUSTRIES DPH-28708 is a robust polycarbonate enclosure suitable for a wide range of industrial and commercial applications. Constructed from light gray polycarbonate (UL94-5VA for the body and cover, UL94-V0 and TESED for the clear cover), this enclosure offers excellent protection against environmental factors. It is UL listed, NEMA rated (Type 1, 2, 3, 3R, 4, 4X, 5, 6, 6P, 12, 13), and meets IP65, IP66, IP67, and IP68 requirements, making it ideal for both indoor and outdoor installations. The enclosure includes a pre-installed silicone gasket for enhanced sealing and comes with four uninstalled mounting brackets and hardware (DPX-100) for easy installation. Optional accessories like hinge kits, flange kits, and mounting panels are available to customize the enclosure for specific needs.
BUD INDUSTRIES DPH28708 Polycarbonate Enclosure Specifications:
- material: PC Light Gray Polycarbonate (UL94-5VA)
- cover_material: PC Light Gray Polycarbonate (UL94-5VA) / Clear Polycarbonate (UL94-V0, TESED)
- flammability_rating: UL94-5VA, UL94-V0
- nema_rating: Type 1, 2, 3, 3R, 4, 4X, 5, 6, 6P, 12, 13
- ip_rating: IP65, IP66, IP67, IP68
- operating_temperature: -35 to 110C
- gasket: Pre-installed silicone gasket
- mounting_brackets: 4 uninstalled (DPX-100)
- optional_accessories: Hinge and panel suspension kit (DPX-444KIT), 6" flange kit (DPX-624KIT), floating internal mounting panel (DPX-287084), hinged internal mounting panel (DPX-287082), cover mounting panel (DPX-287083), base internal mounting panel (DPX-287081)
- uv_resistance: Yes
- dimensions_unit: inch
