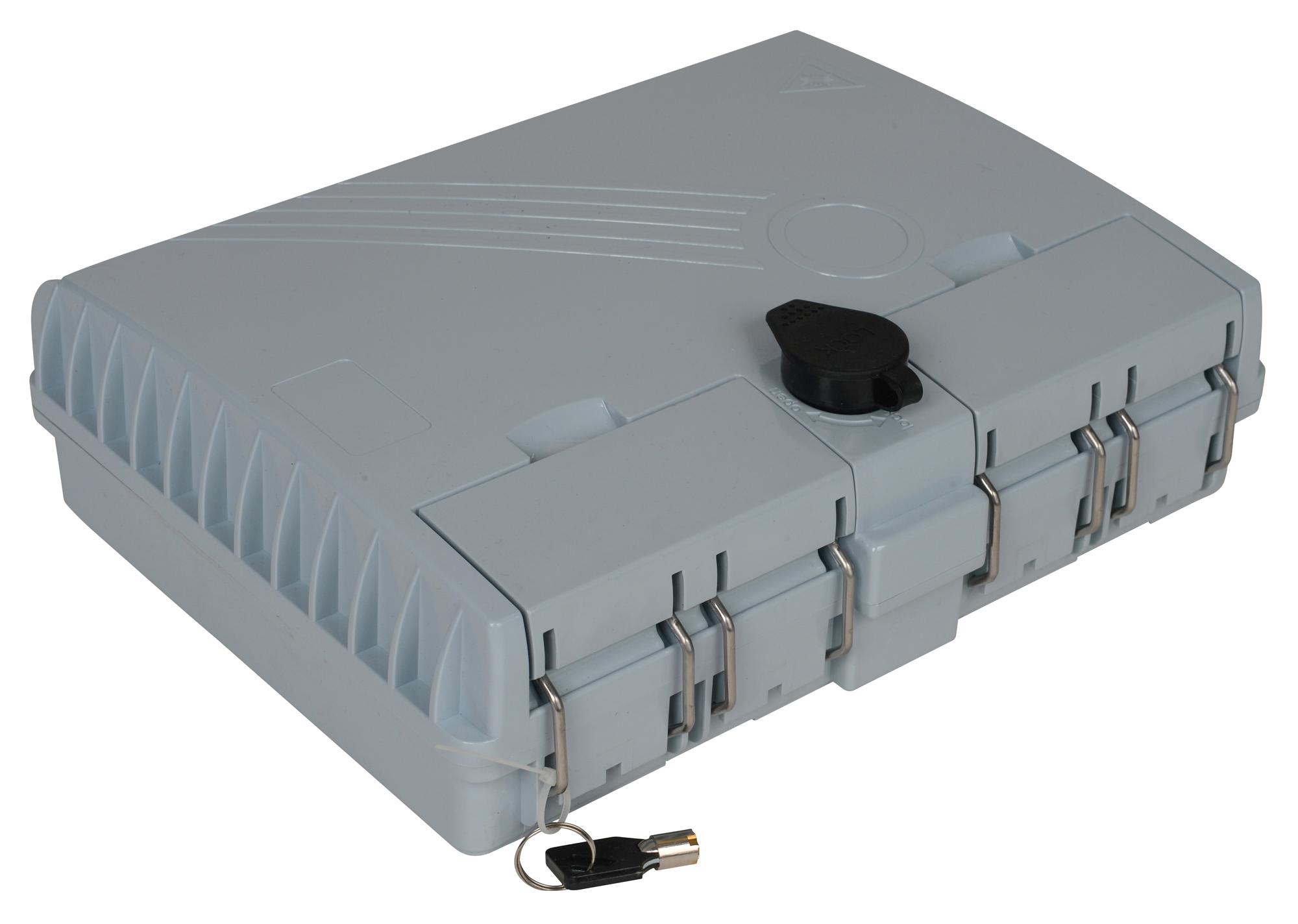

BUD INDUSTRIES FBR11609 Fiber Termination Box
The fiber termination box is designed for FTTx communication networks, providing integrated fiber splicing, splitting, and cable management. It features a sealed enclosure with anti-theft locking, suitable for outdoor and indoor use, and supports both wall and pole mounting. Crafted from high-quality material, it offers dust and moisture resistance, making it ideal for outdoor telecommunications, FTTH, and LAN/WAN applications. The box handles fiber connections efficiently, with a compact size of 292mm x 218mm x 83mm and excellent electrical insulation properties, ensuring reliable network operation.
BUD INDUSTRIES FBR11609 Fiber Termination Box Specifications:
- Dimensions: 292mm x 218mm x 83mm
- Work Temperature: -40°C to +85°C
- Relative Humidity: < 85% (+30°C)
- Atmospheric Pressure: 70Kpa to 106Kpa
- Insert Loss: < 0.2dB
- UPC Return Loss: > 50dB
- APC Return Loss: 60dB
- Insert and Pull out Life: 1000 times
- Insulation Voltage: 23000V DC
- Grounding Insulation: withstand voltage over 3000V/Min
- Material: High-quality weatherproof plastic
- Mounting Options: Wall and pole (optional accessories)
- Protection Level: Dust and moisture proof
- Application: Telecommunication, FTTH, LAN/WAN
Buy the Brand PartNumber – Reliable Fiber Termination for Industrial Applications
Order the Fiber Termination Box FBR11609 online today to ensure your fiber optic network is protected and efficiently managed. This high-quality enclosure supports fiber splicing, splitting, and distribution with ease, providing dust and moisture resistance suitable for outdoor and indoor environments. Its compact design allows wall or pole mounting, and the anti-theft lock enhances security. Ensure seamless telecommunication operations, FTTH deployment, and LAN/WAN connectivity by purchasing this reliable fiber management solution online, guaranteeing durability and top performance in demanding conditions.
Buy Brand FBR11609 now and experience unmatched reliability and performance in fiber network management.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES FBR11609?
You can click on the BUY or RFQ button to purchase FBR11609 from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part FBR11609?
You can download the FBR11609 datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of FBR11609?
BUD INDUSTRIES
