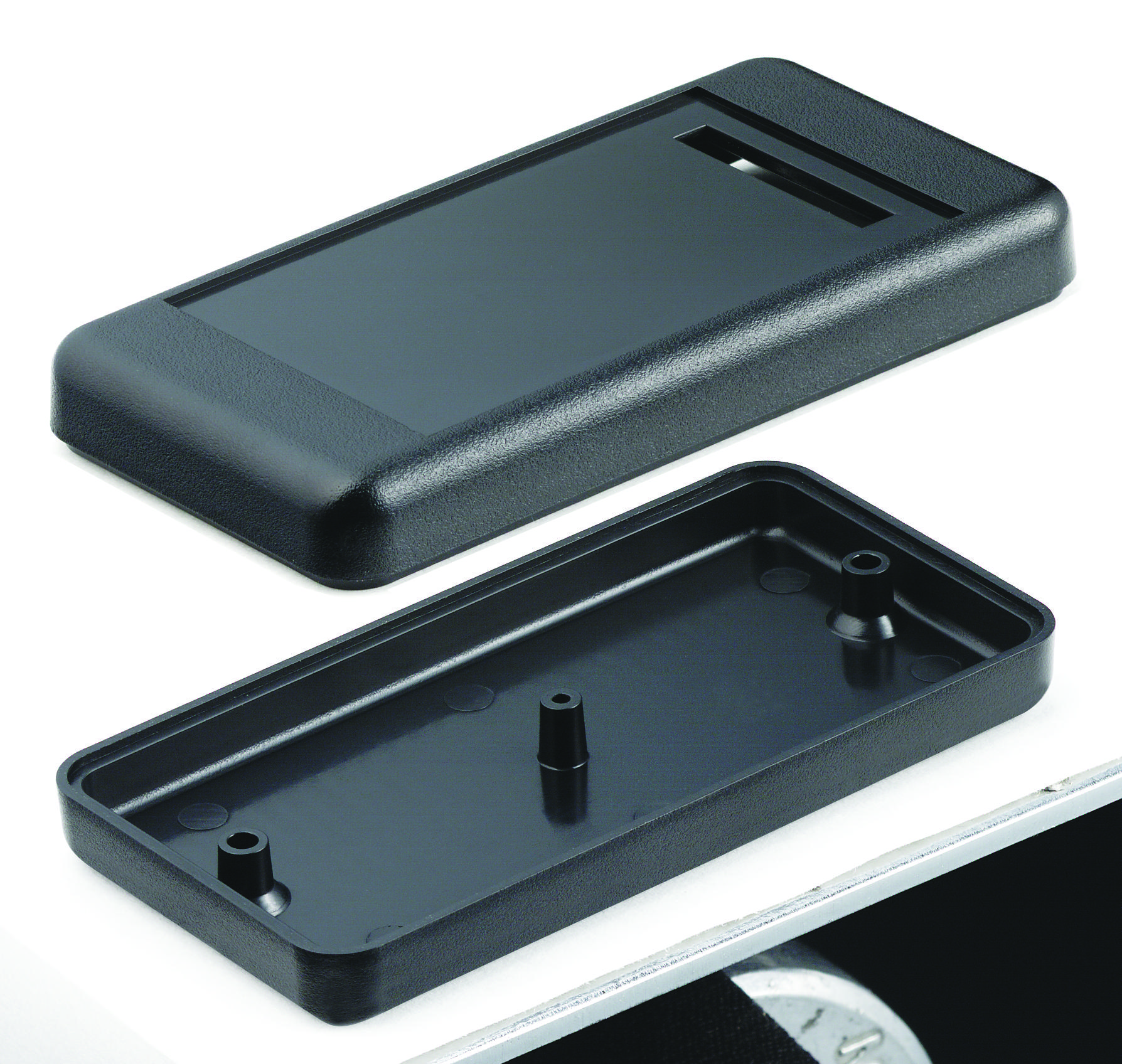

BUD INDUSTRIES HH3470 hand-held enclosure
The hand-held enclosure style DY is made of UL94V-0 ABS material with a black textured finish. It features detailed dimensions, including smooth recessed pads, cutouts, bosses, and holes for assembly, with maximum PC board dimensions of 0.250 inches. Designed for durability and ease of assembly, it includes two oval head screws for secure fastening. The enclosure's compact size and reinforced features make it ideal for portable electronic devices or handheld controls, offering reliable protection and precise fitting for electronic components in a rugged design.
BUD INDUSTRIES HH3470 hand-held enclosure Specifications:
- Material: ABS (UL94V-0)
- Finish: Black textured
- PC board dimensions: Max 0.250 inches
- Overall dimensions: based on detailed cutouts and bosses
- Boss diameters: 0.188, 0.156, 0.113 inches
- Boss hole diameter: 0.082 inches and 0.094 inches
- Mounting holes: 0.509 inches, 0.063 inches diameter
- Recessed pads: 0.635 inches length, 0.150 inches wide, 0.010 inches deep
- Screw type: Two #4 x 1/2 inches oval head screws (HH-3470) or two #2 x 3/8 inches pan head screws (HH-3490)
- Dimensions tolerance: #0.015 inches
Buy the Janna Series HH-3470 Hand Held Enclosure: HH3470
Enhance your electronic project with the durable hand-held enclosure made of UL94V-0 ABS with a textured black finish. Featuring precisely placed cutouts, bosses, and mounting holes, this enclosure provides a secure fit for portable devices. It includes two screws for easy assembly, ensuring reliable performance and protection for sensitive electronics. Ideal for handheld controls, portable instrumentation, or custom devices, this enclosure combines durability with a compact, ergonomic design. Order now online to streamline your assembly process and deliver high-quality results.
Order your Janna Series HH-3470 hand-held enclosure today and give your projects the dependable quality they deserve for portable electronic devices.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES HH3470?
You can click on the BUY or RFQ button to purchase HH3470 from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part HH3470?
You can download the HH3470 datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of HH3470?
BUD INDUSTRIES
