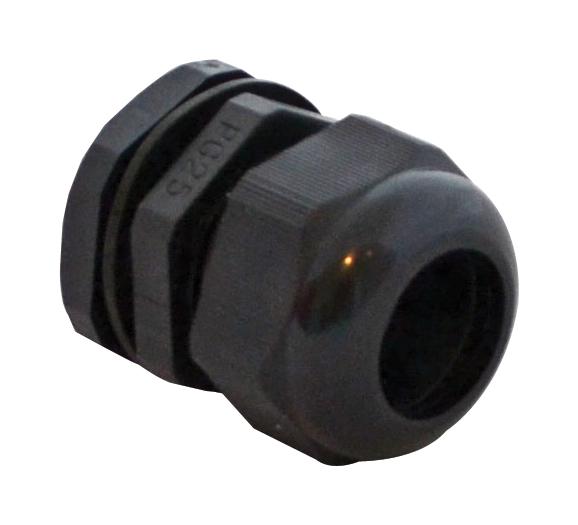

BUD INDUSTRIES IPG22225 Nylon Cable Gland
The IPG-22225 is a black nylon cable gland made from high-impact resistant nylon plastic, sealed with a nitrile rubber gasket. It is designed to meet high-quality standards suitable for NEMA applications. The gland covers a range from PG7 to PG63, featuring standard thread lengths and optional extra-long threads for thick enclosure walls. It also includes a bend-proof version for use with bend-sensitive cables. This cable gland offers IP66 (TUV certified) protection and is well suited for plastic enclosures, making it ideal for use in consumer electronics and industrial applications.
BUD INDUSTRIES IPG22225 Nylon Cable Gland Specifications:
- Material: Nylon plastic, high-impact resistant
- Gasket Material: Nitrile rubber
- Color: Black
- Ingress Protection: IP66 (TUV certified)
- Range: PG7 to PG63
- Thread Length: Standard with optional extra-long for thick walls
- Design: Bend-proof version available for bend-sensitive cables
- Tolerance: All dimensions ± 0.01 inches [.25 mm]
- Dimensions (varies by model): PG-25 size with inner diameter 1.16 inches (29.5 mm), outer diameter 1.53 inches (38.9 mm), length 1.16 inches (29.5 mm), and nut size 1.53 inches (38.9 mm)
- Application: Suitable for plastic enclosures in industrial and consumer electronics
- Certifications: TUV
Buy the Nylon Cable Gland Series IPG: IPG22225
Order the IPG22225 nylon cable gland online today for exceptional sealing and durability in industrial and electronic applications. Crafted from high-impact resistant nylon and sealed with nitrile rubber, it provides IP66 protection suitable for a variety of environments. Its versatile PG range, from PG7 to PG63, includes optional extra-long threads for thick walls and bend-proof designs for sensitive cables. Trusted for quality, ease of installation, and optimal protection, this cable gland is an essential component for reliable enclosures in manufacturing and automation industries. Buy now to secure your electronic assemblies with confidence.
Buy IPG22225 nylon cable gland now and experience unmatched reliability and performance in industrial and electronic enclosure protection.
