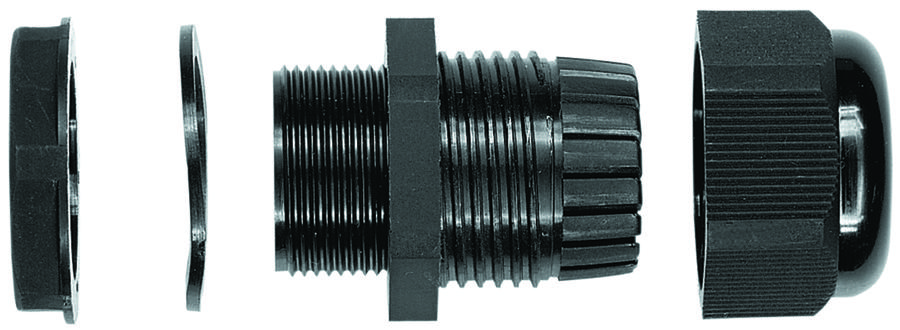

BUD INDUSTRIES NG9517 NEMA 4X Cable Gland
The NG-9517 is a black cable gland designed for NEMA-4X enclosures, featuring a durable nylon 6.6 body and nylon nut. It includes an NBR seal and rubber washer gasket for effective sealing. The gland is compatible with PG29 threads and suitable for outdoor and industrial use, rated for a torque of 13 Nm. It withstands temperatures from -40°C to 105°C and complies with UL94V-2 flammability standards, making it ideal for reliable and safe cable management in demanding environments.
BUD INDUSTRIES NG9517 NEMA 4X Cable Gland Specifications:
- Material: Nylon 6.6 (body and nut)
- Seal Material: NBR rubber
- Washer Gasket: Rubber
- Flammability Rating: UL94V-2
- Temperature Range: -40°C to 105°C
- Thread Type: PG29
- Torque Rating: 13 Nm
- Diameter Range: 0.709 to 0.945 inches
- Ingress Protection: IP-68
- Color: Black
- Operating Environment: Industrial and outdoor applications
- Construction: Durable nylon and rubber gasket for reliable sealing
Buy the NEMA 4X Cable Gland Series NG9517: NG9517
Secure your cables with confidence by ordering the NEMA 4X Cable Gland Series NG9517 online today. Designed for durability, it features a nylon body, NBR seal, and rubber washer gasket, providing excellent sealing for outdoor and industrial applications. Rated for -40°C to 105°C temperatures, it offers reliable performance and IP-68 protection. Installing this gland ensures safe, watertight cable management for electrical enclosures, complying with UL standards and rated for a torque of 13 Nm. Invest in quality now to protect your infrastructure.
Order your NEMA 4X Cable Gland Series NG9517 today and ensure your cables are securely sealed in demanding industrial environments with high-quality nylon construction.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES NG9517?
You can click on the BUY or RFQ button to purchase NG9517 from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part NG9517?
You can download the NG9517 datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of NG9517?
BUD INDUSTRIES
